Body Hinge Pillar Trim Panel Replacement

Body Hinge Pillar Trim Panel Replacement

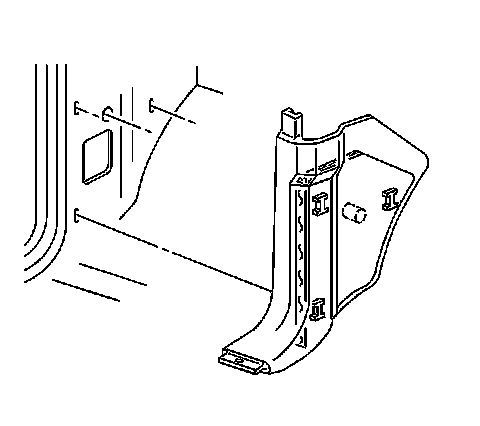

Removal Procedure





1. Remove the retainer screw.
2. Remove the trim panel from the retainers.



Installation Procedure





1. Install the trim panel to the retainers.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the retainer screw.

Tighten the screw to 6 N.m (53 lb in).
