Sun Visor: Service and Repair

Sunshade Replacement

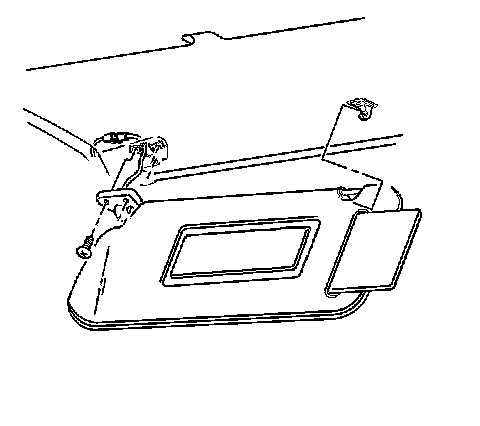

Removal Procedure





1. Remove the screws that retain the sunshade to the roof.
2. Disconnect the electrical connector, if equipped.
3. Remove the sunshade from the vehicle.



Installation Procedure





1. Connect the electrical connector, if equipped.
2. Install the sunshade.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the screws.

Tighten the screws to 6 N.m (53 lb in).
