Ashtray Replacement - IP

Ashtray Replacement

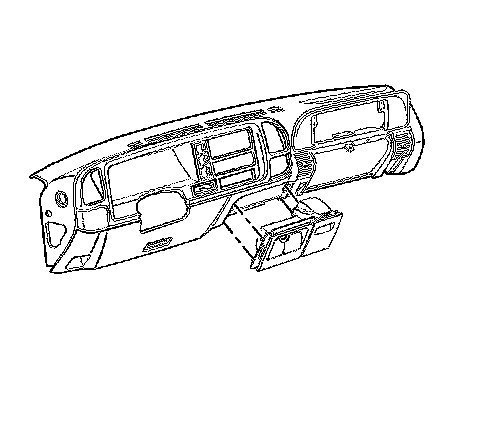

Removal Procedure





1. Remove the ashtray retainer inserts from underneath the instrument panel.
2. Disconnect the electrical connectors.
3. Remove the ashtray from the instrument panel.



Installation Procedure





1. Connect the electrical connectors.
2. Install the ashtray into the instrument panel.
3. Install the ashtray retainer inserts.
