Lateral Stabilizer Rod: Service and Repair

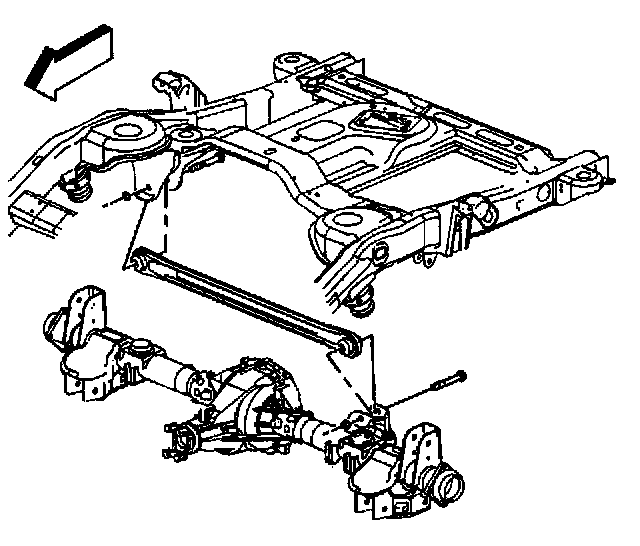

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Support the rear axle.
3. Disconnect the park brake cable from the track bar.
4. Remove the nuts.
5. Remove the bolts.
6. Remove the track bar.


Installation Procedure





1. Install the track bar.
2. Install the bolts.

Notice: Refer to Fastener Notice in Service Precautions.

Important: Do not tighten the bolts unless the suspension is at the curb height position.
3. Install the nuts.
- Tighten the bolts to 105 Nm (77 ft. lbs.).
4. Connect the park brake cable to the track bar.
5. Remove the rear axle support.
6. Remove the safety stands.
7. Lower the vehicle.
