Steering Damper: Service and Repair

- Tools Required
- J 6627-A Tie Rod Puller
- J 29193 Steering Linkage Installer (12 mm)

Removal Procedure





1. Raise and support the vehicle on stands. Refer to Vehicle Lifting.
2. Remove the differential carrier shield. Refer to Shield Replacement.

Important: Use the proper tool in order to separate the ball stud.

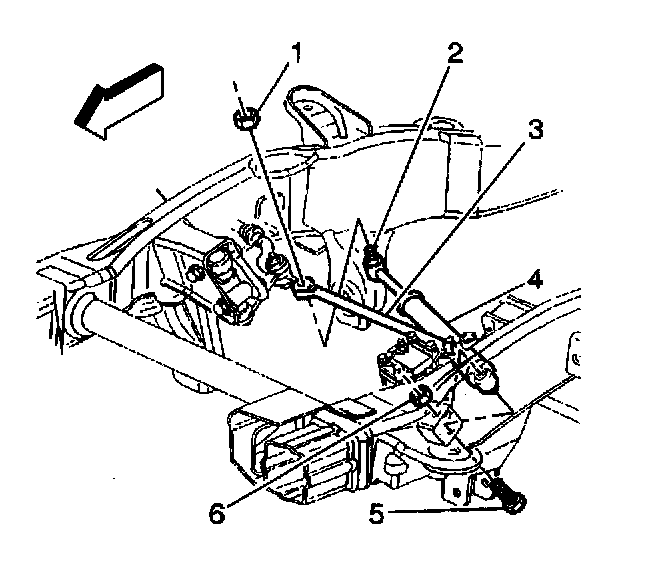

3. Remove the steering damper ball stud nut (1). Do not reuse the nut.

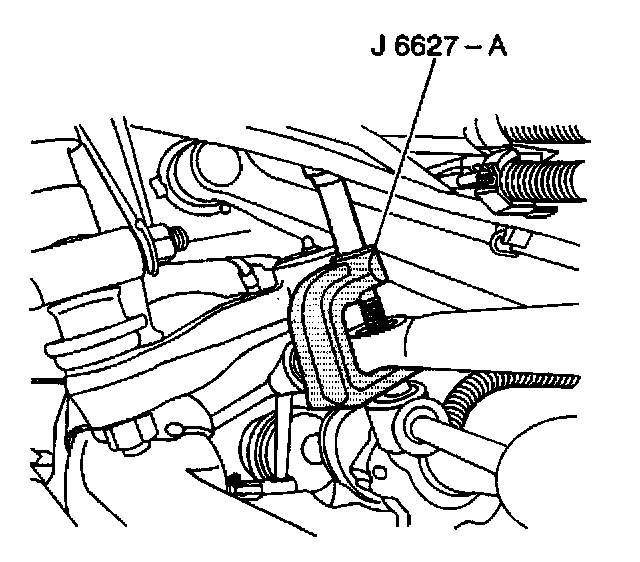

4. Remove the steering damper ball stud from the relay rod using the J 6627-A.





5. Remove the steering damper mounting bolt (5) and the nut (6). Do not reuse the nut.
6. Remove the steering damper (4) from the vehicle.
7. Inspect the following parts:
- The steering damper for leaks and damage
- The mounting bolts and the nuts for damage or corrosion


Installation Procedure

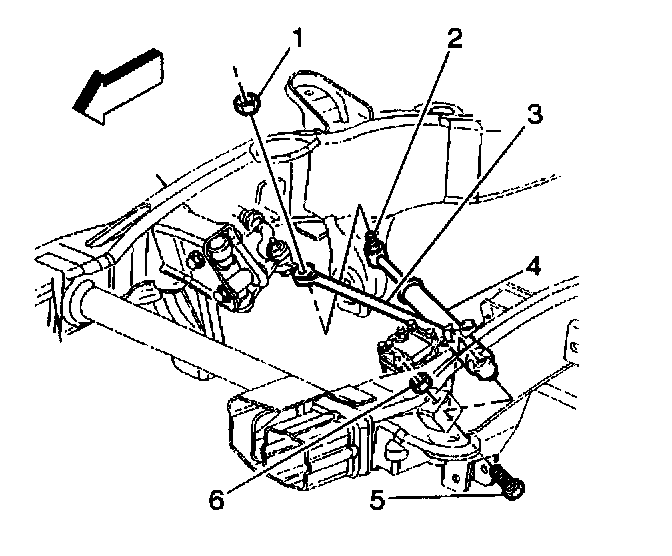

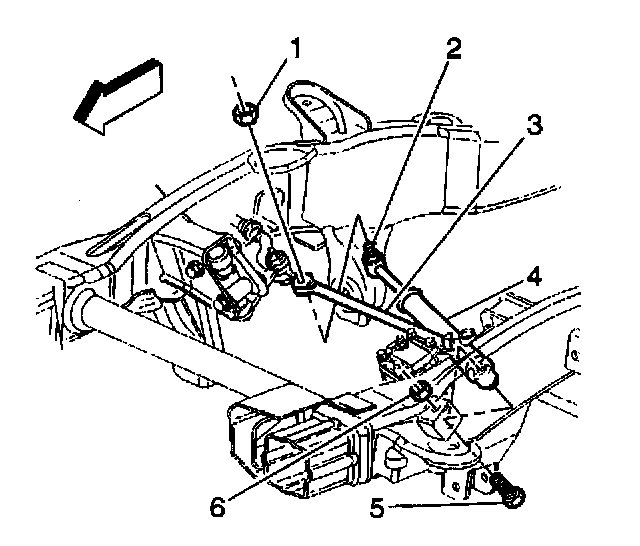

1. Install the steering damper (4).
2. Install the mounting bolt (5) and a new prevailing torque nut (6).
3. Install the steering damper ball stud (2) to the relay rod (3).

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the J29193.
- Tighten the steering linkage installer in order to seat the ball stud in the relay rod.
- Tighten the steering linkage installer to 62 Nm (46 ft. lbs.).
5. Remove the J29193.
6. Lower the vehicle.
7. Install the prevailing ball stud nut (1).
- Tighten the mounting nut (6) to 40 Nm (30 ft. lbs.).
- Tighten the ball stud nut (1) to 62 Nm (46 ft. lbs.).
8. Install the differential carrier shield. Refer to Shield Replacement.
