Right Front

REMOVAL PROCEDURE




1. Remove the front seat from the vehicle.

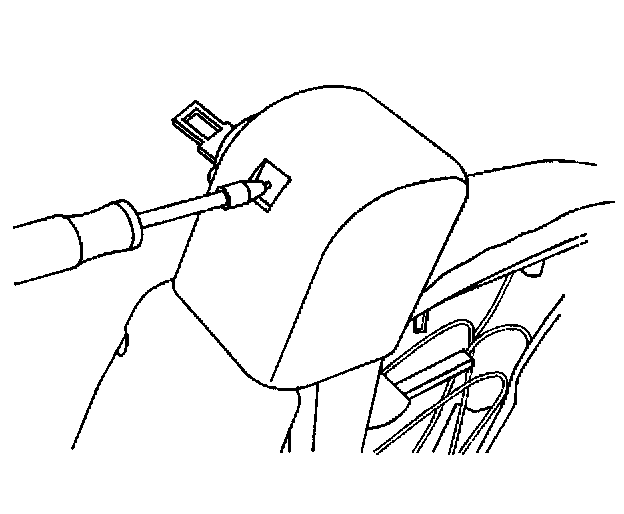

2. Gently pry off the retractor tower bezel.
3. Remove the seat back trim cover and rear cardboard panel.

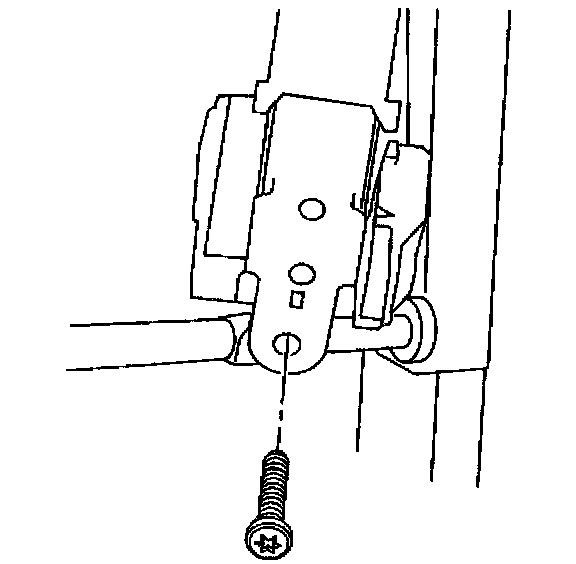

4. Remove the retractor bolt.

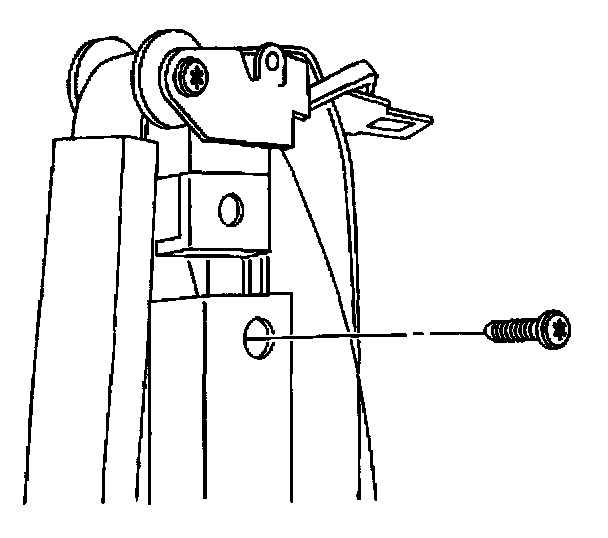

5. Remove the retractor tower retaining screw.

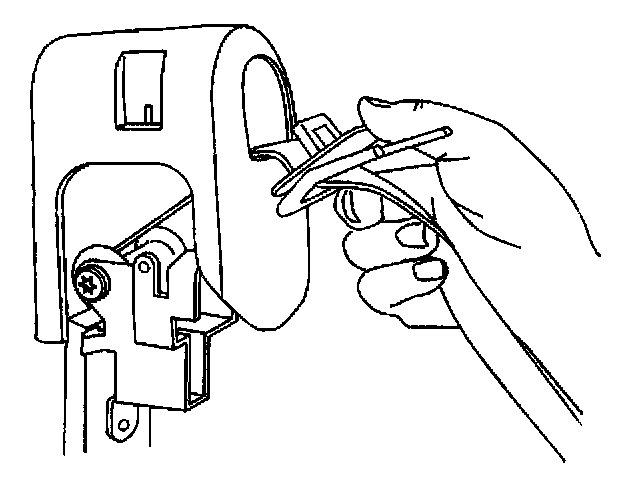

6. Remove the retractor tower.




7. Remove the upper anchor bolt.
8. Remove the retractor from the seat.

INSTALLATION PROCEDURE




1. Position the seat belt retractor onto the seat. Line up the tab on the retractor to the tab on the seat frame.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the upper anchor bolt.

Tighten
Tighten the bolt to 53 N.m (39 lb ft).




3. Install the retractor tower.
4. Install the retractor tower retaining screw.

Tighten
Tighten the screw to 2 N.m (18 lb in).




5. Install the retractor.
6. Install the retractor bolt.

Tighten
Tighten the bolt to 53 N.m (39 lb ft).

7. Install the rear cardboard panel and the seat back trim cover and pad.




8. Gently install the retractor tower bezel.
9. Install the seat in the vehicle.
