Home
>>
Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
PCM, TP Sensor, TAC Motor, TAC Module
PCM, TP Sensor, TAC Motor, TAC Module

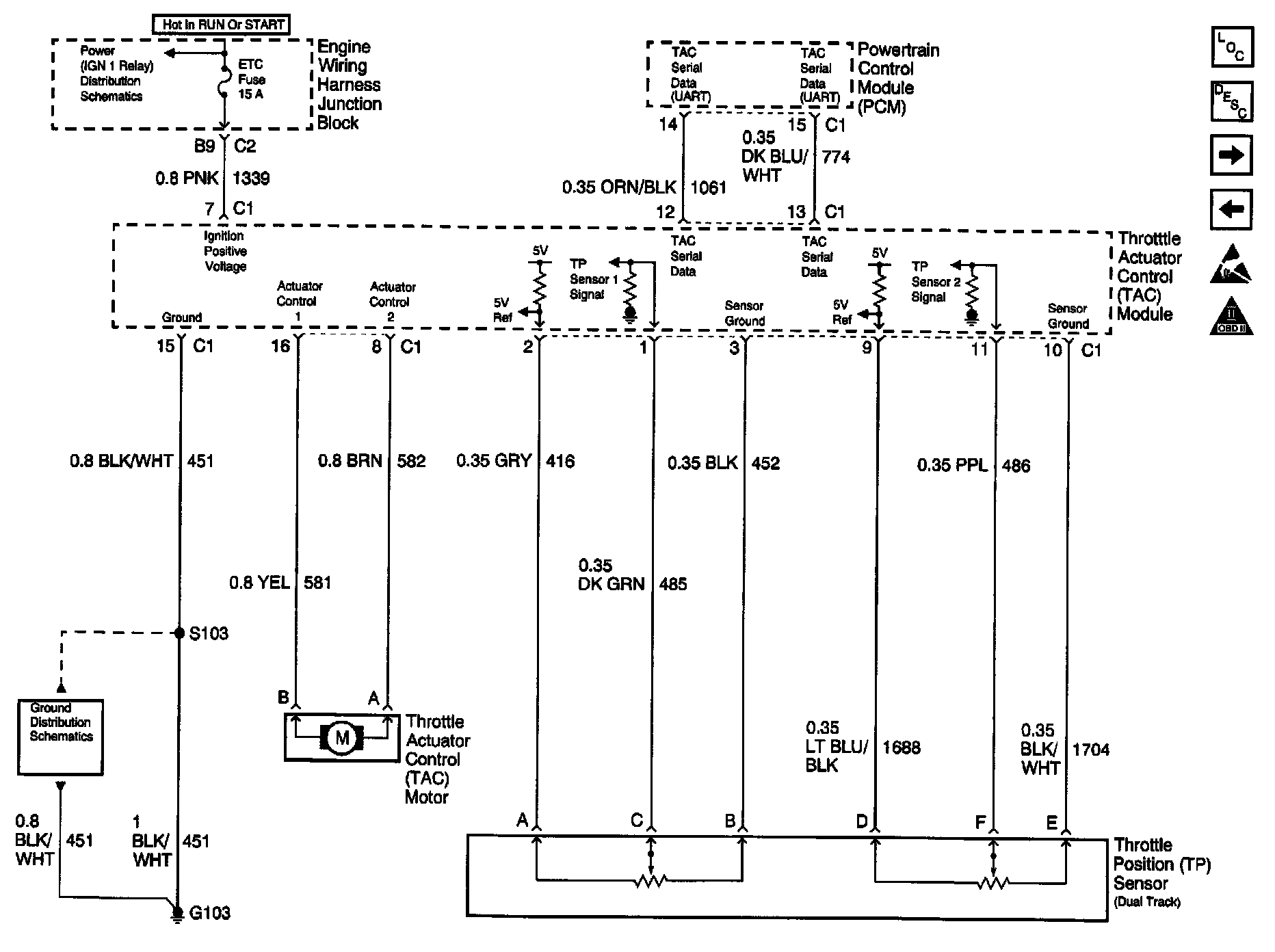

Engine Controls Schematics: PCM, TP Sensor, TAC Motor, TAC Module:
