DLC, CIGAR Fuse, G103, G203
DLC, CIGAR Fuse, G103, G203

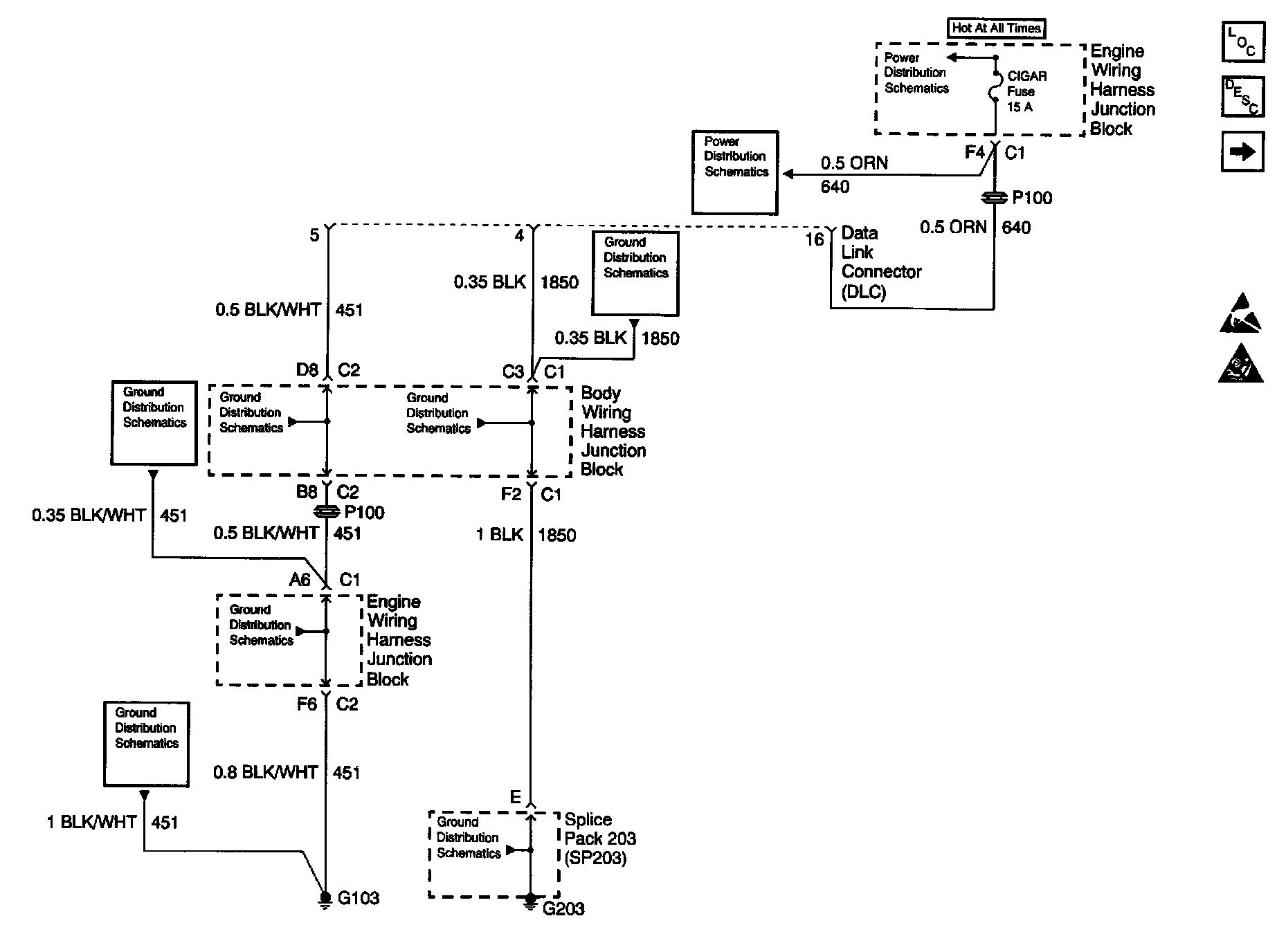

Data Link Connector (DLC) Schematics: CIGAR Fuse, G103, G203:
