Home >> Chevy Truck >> 2000 >> C Tahoe 2WD V8-4.8L VIN V >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Underhood Junction Block

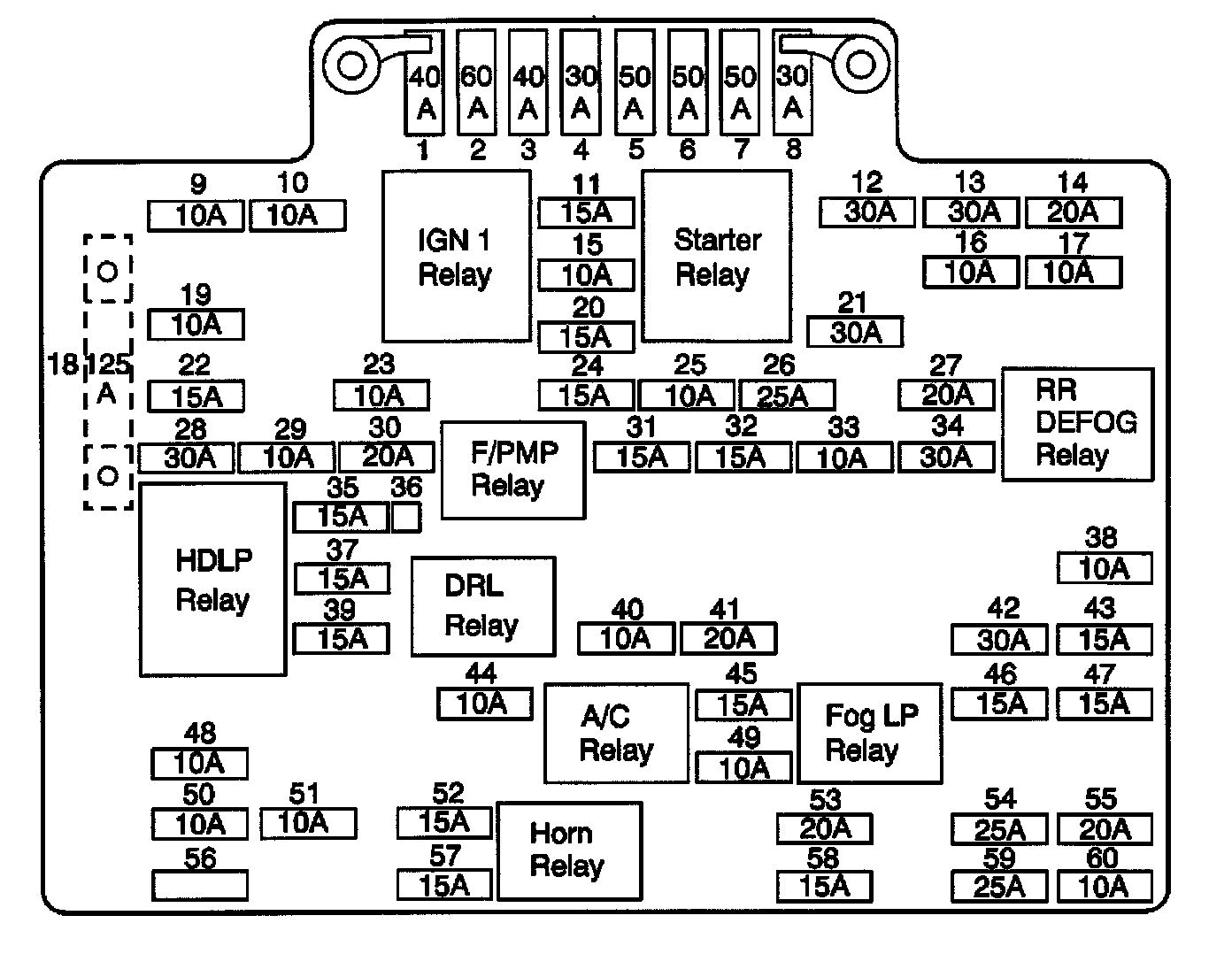

Underhood Junction Block

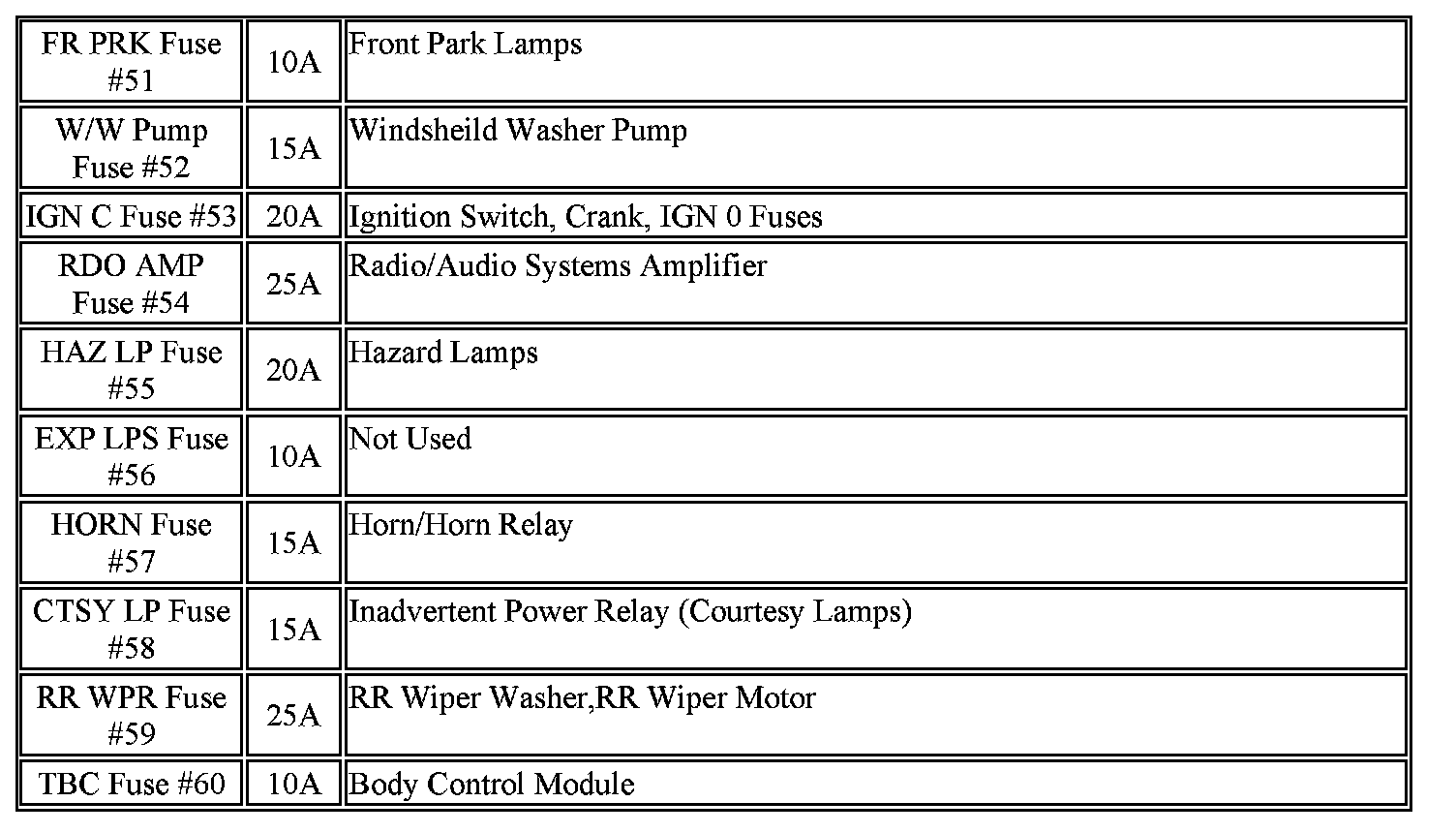

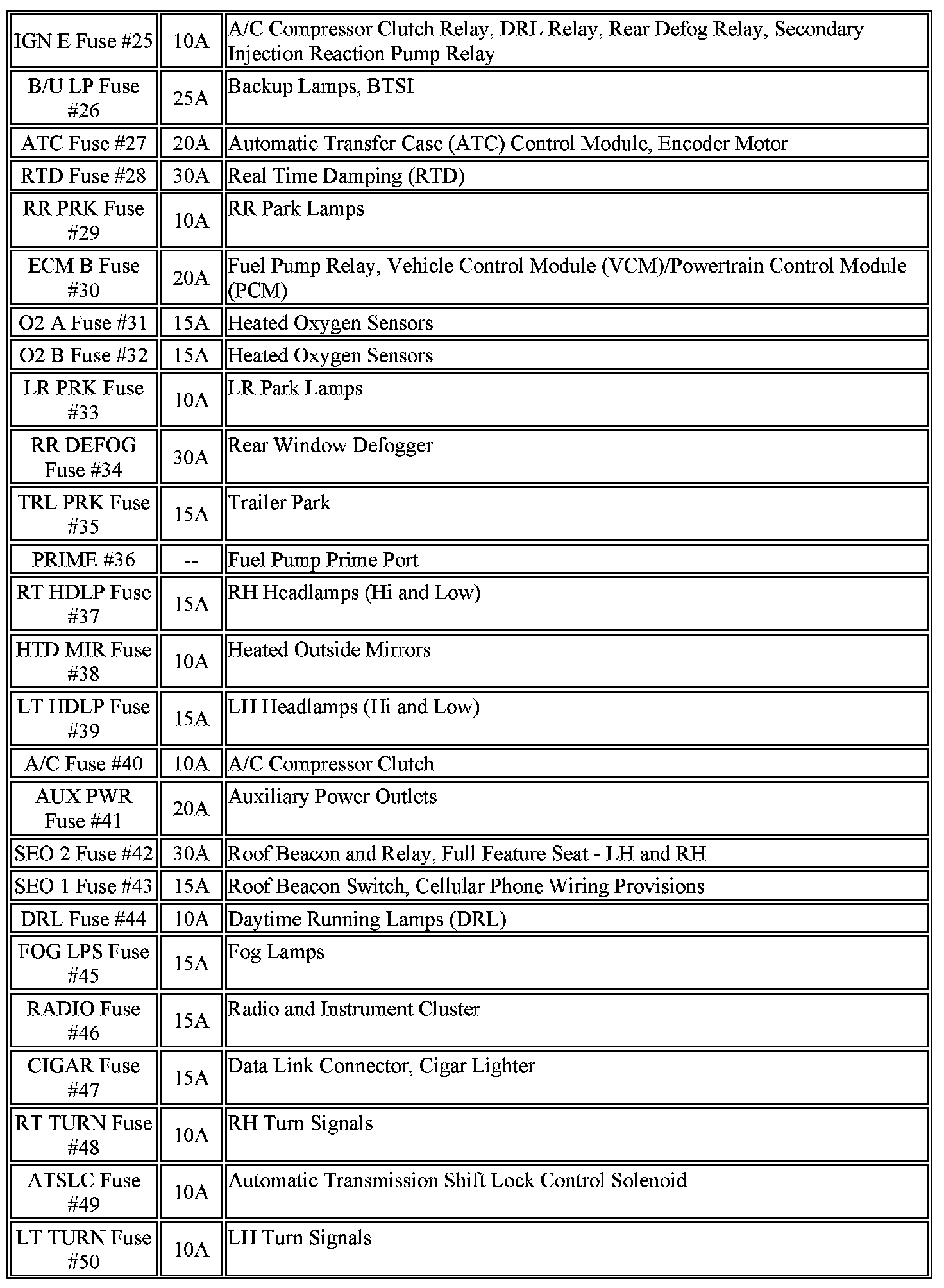

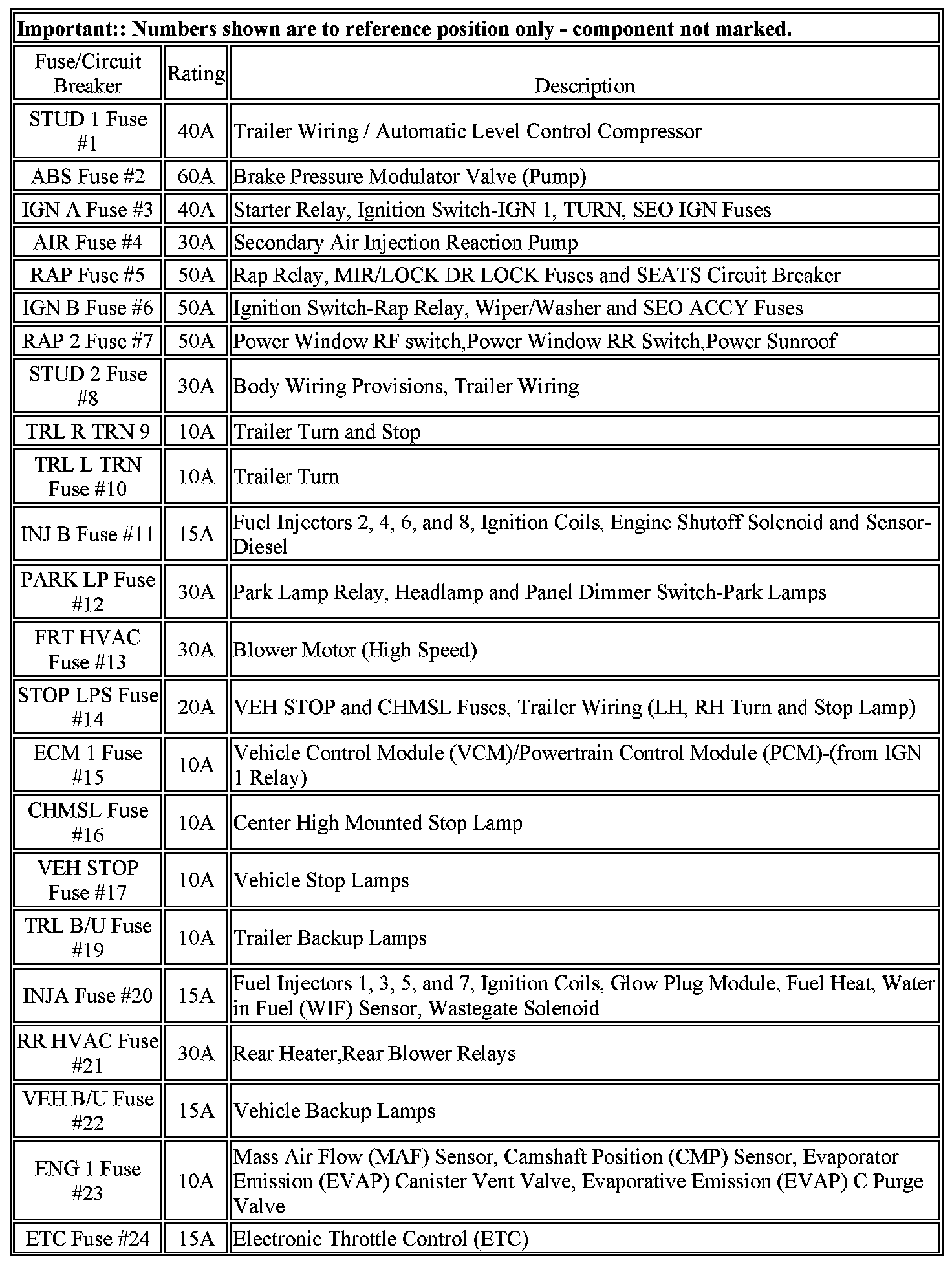

Engine Wiring Junction Block Fuse Application
