Power Window/Door Lock Switch, HVAC
Power Window/Door Lock Switch, HVAC

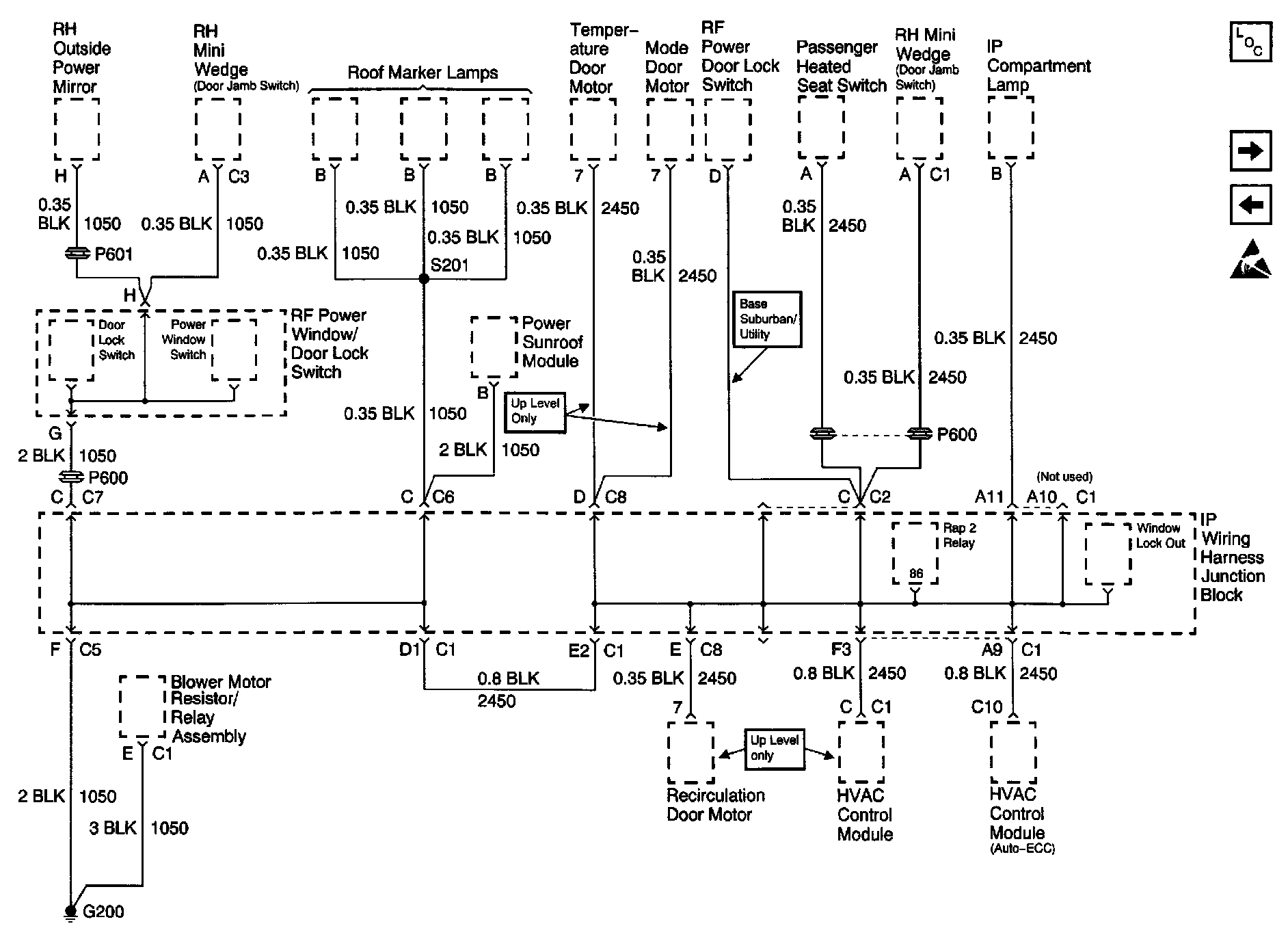

Ground Distribution Schematics: Power Window/Door Lock Switch, HVAC:
