Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Refrigerant Pressure Sensor / Switch
>>
High Pressure Sensor / Switch
>>
Diagrams
>>
HVAC Systems - Automatic
HVAC Systems - Automatic

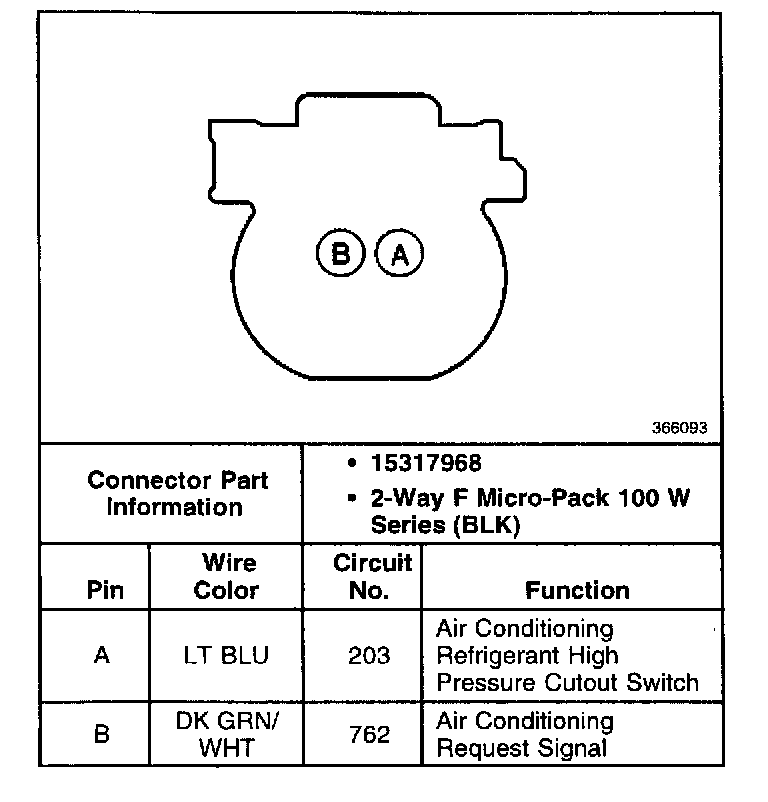

A/C Compressor High Pressure Cutout Switch:
