HVAC Control Module, Blower Motor (Rear)
HVAC Control Module, Blower Motor (Rear)

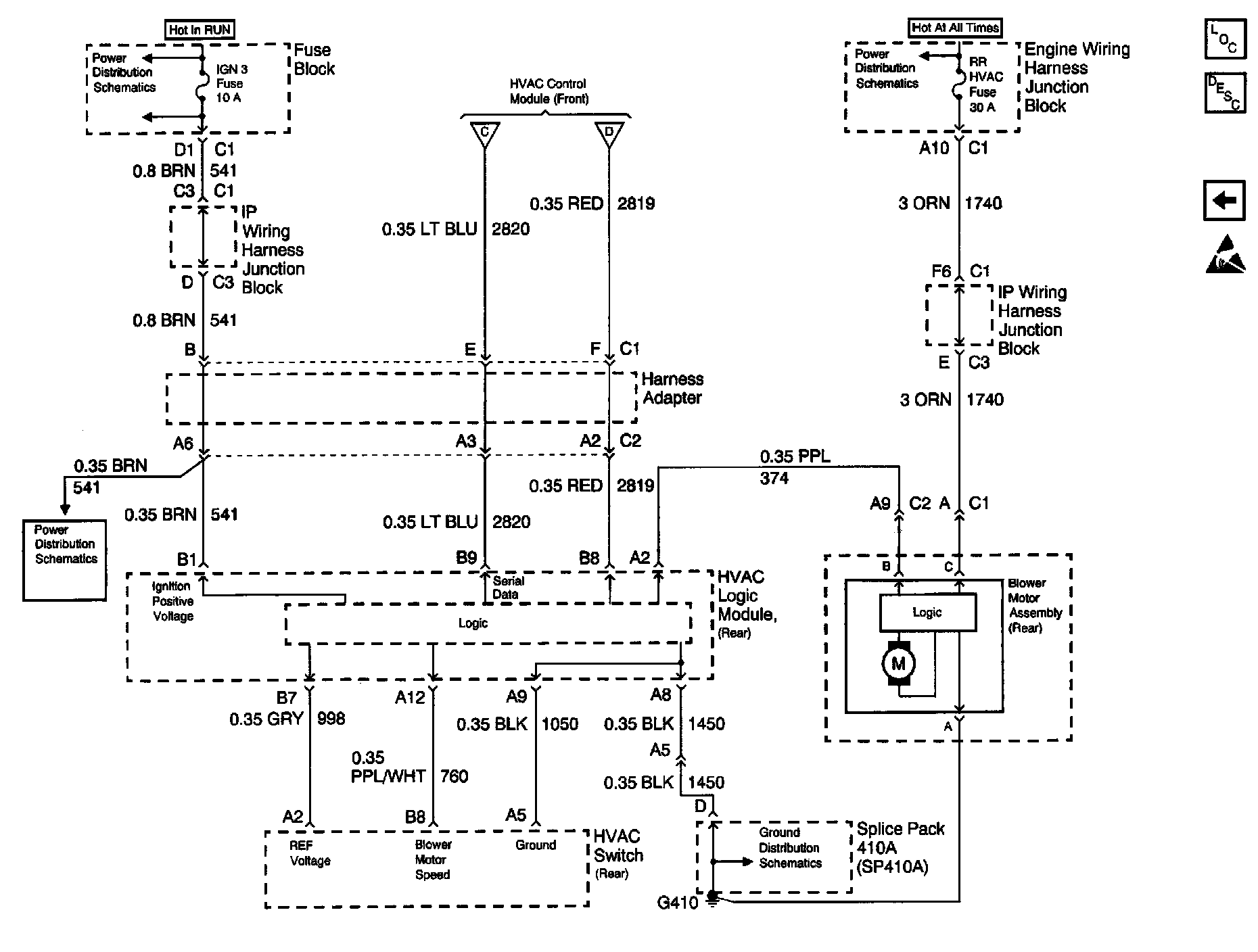

HVAC Blower Control Schematics: HVAC Control Module, Blower Motor (Rear):
