Center

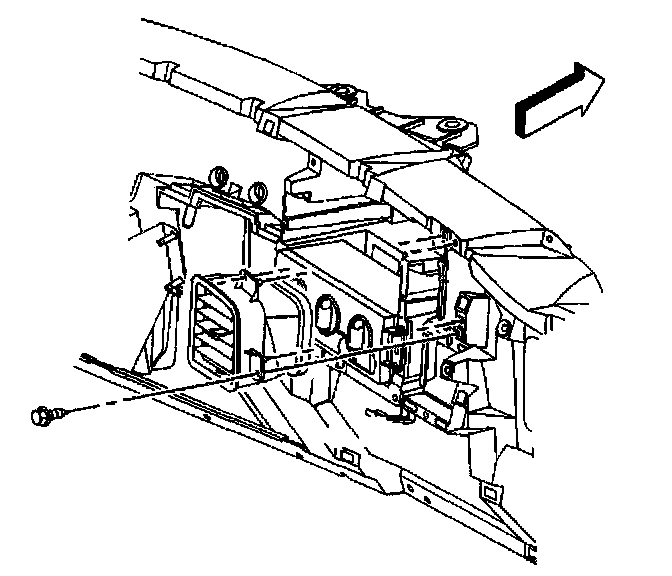

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) bezel.
2. Remove the air outlet mounting screw.
3. Remove the air outlet.

INSTALLATION PROCEDURE




1. Install the air outlet.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the air outlet mounting screw.

Tighten
Tighten the screw to 1.6 N.m (14 lb in).

3. Install the instrument panel (IP) bezel.
