RAP Relay, Rap 2 Relay, Ignition Switch, BCM
RAP Relay, Rap 2 Relay, Ignition Switch, BCM

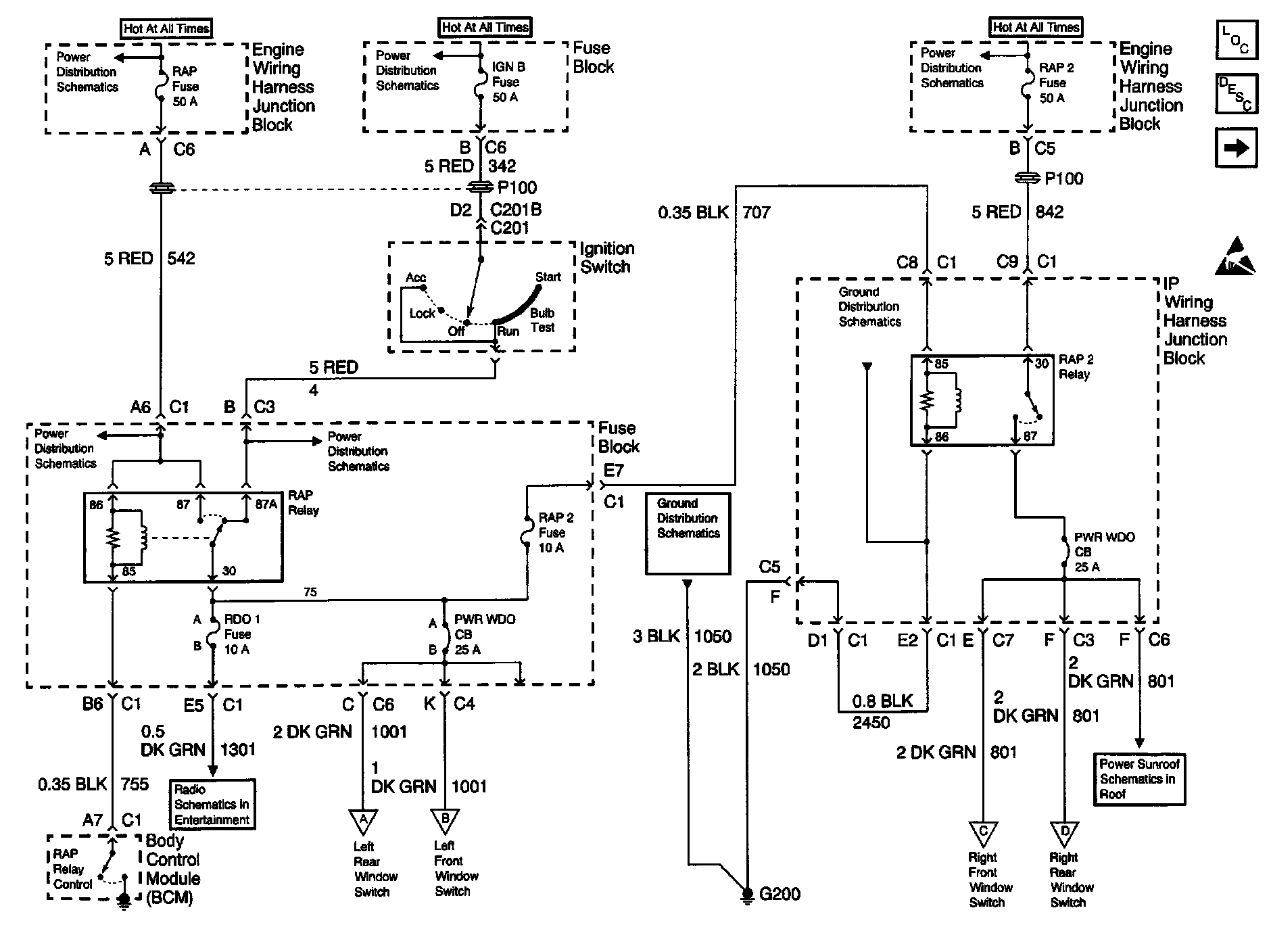

Power Window Schematics: RAP Relay, RAP2 Relay, Ignition Switch, BCM - (4DR):
