Suspension Control Module, Shock Solenoid Valves
Suspension Control Module, Shock Solenoid Valves

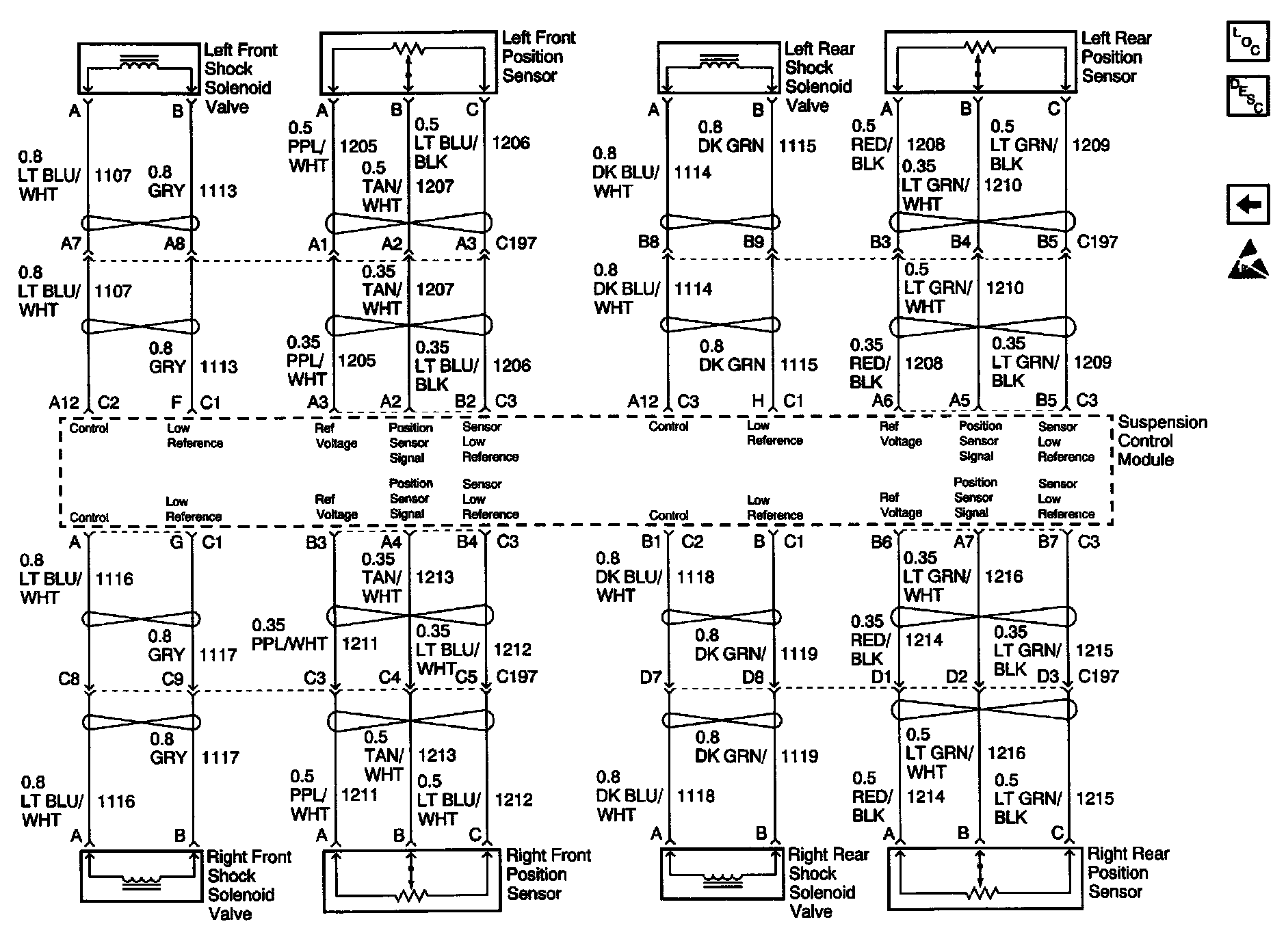

Suspension Controls Schematics: Suspension Control Module, Shock Solenoid Valves:
