Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension
>>

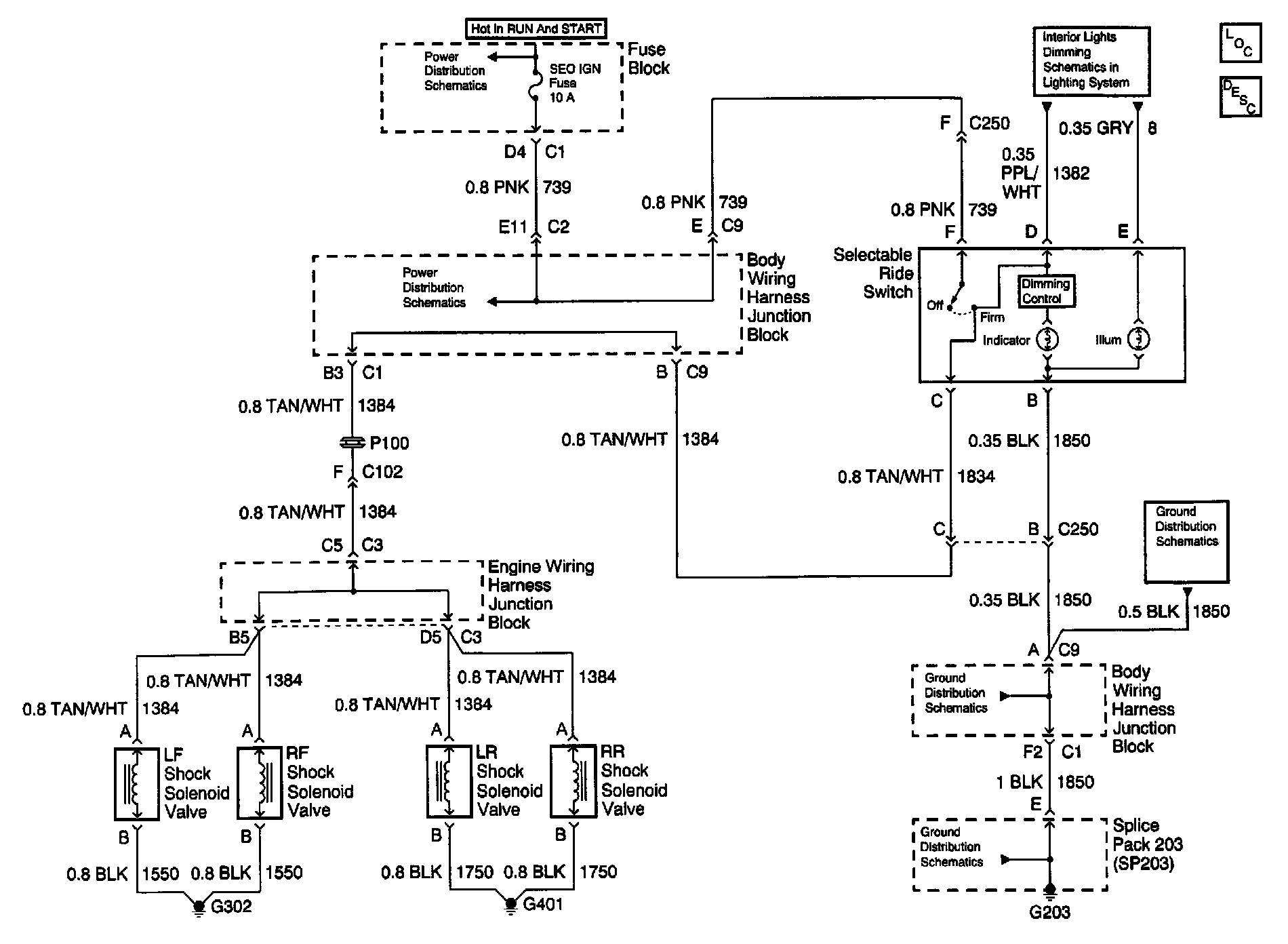

Selectable Ride Schematics
Selectable Ride Schematics
Selectable Ride Schematics:
