Engine Wiring Harness Junction Block
Engine Wiring Harness Junction Block

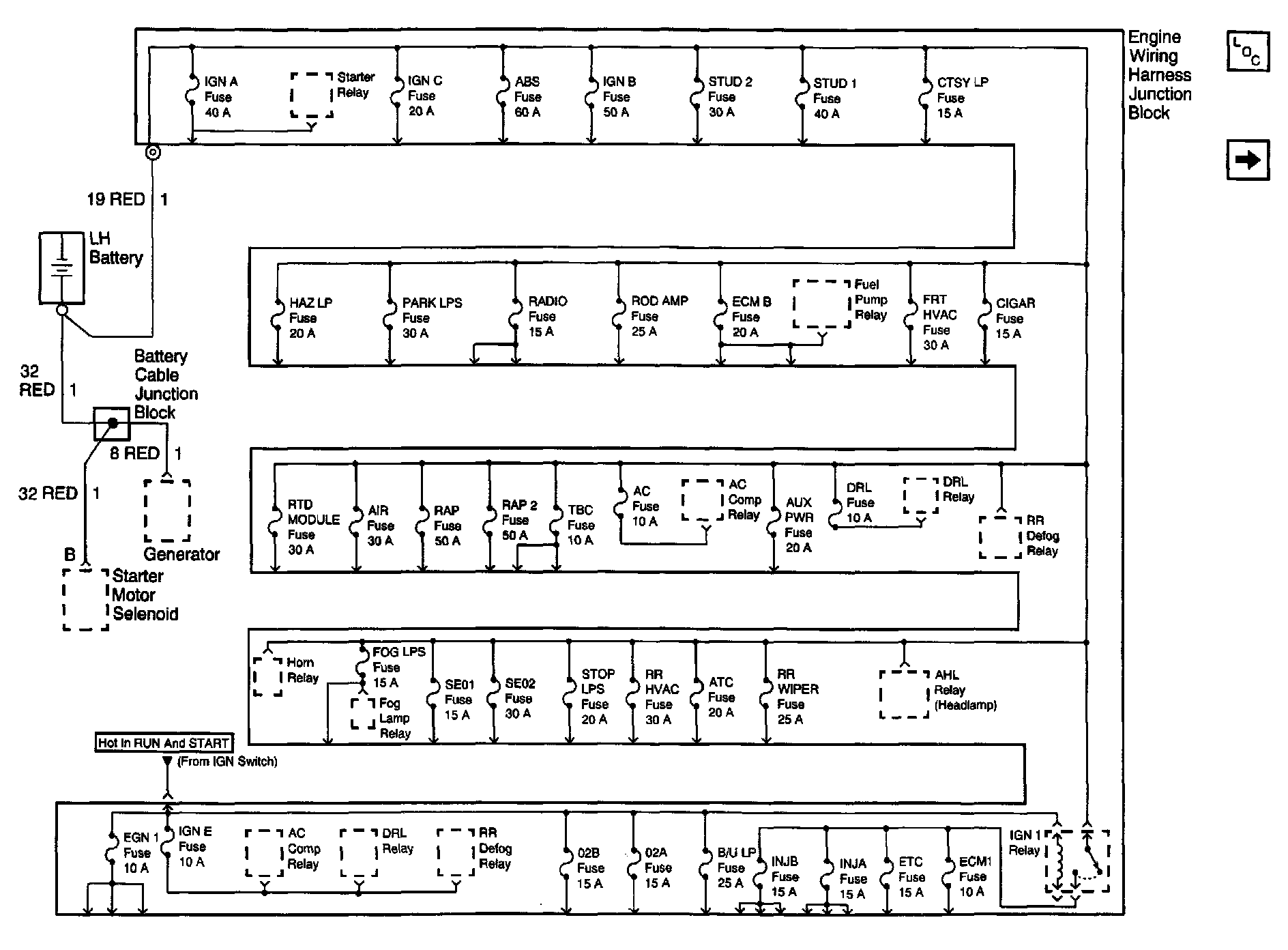

Power Distribution Schematics: Engine Wiring Harness Junction Block:
