ABS Schematics (ABS W/Traction Assist)
>>
EBCM, PCM/VCM, DLC, Fuse Block, IP, Stoplamp Switch
EBCM, PCM/VCM, DLC, Fuse Block, IP, Stoplamp Switch

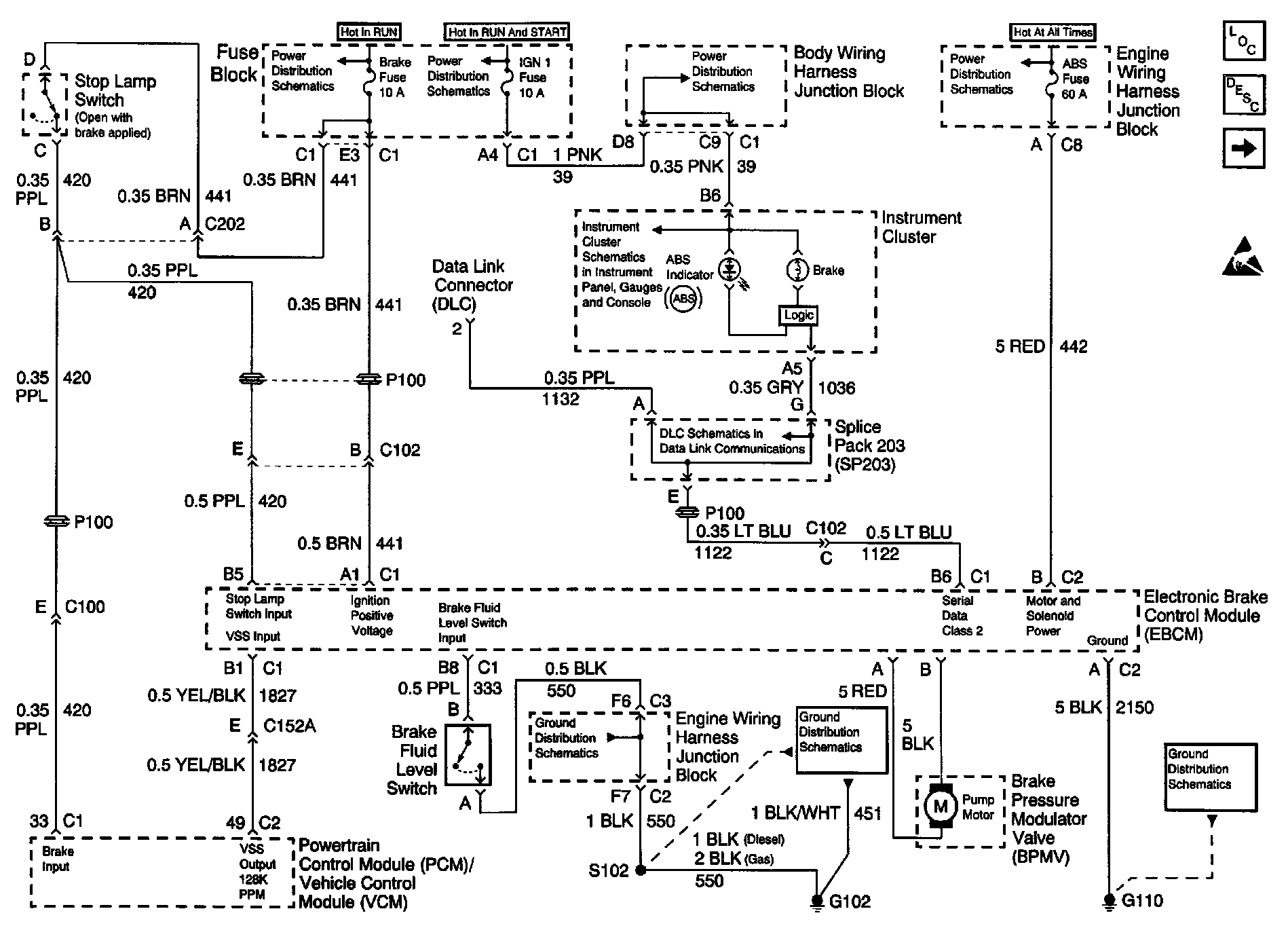

ABS Schematics (ABS W/Traction Assist): EBCM, PCM/VCM, DLC, Fuse Block, IP, Stoplamp Switch:
