Home
>>
Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Actuator
>>
LF Power Door Lock Actuator
LF Power Door Lock Actuator

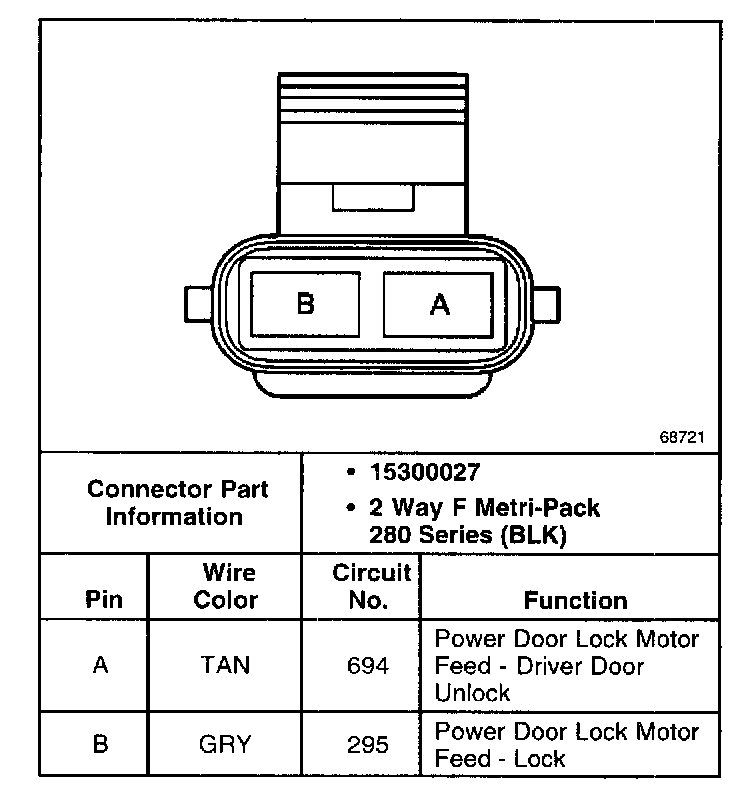

LF Power Door Lock Actuator:
