Home
>>
Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
System Diagram
>>
Roof Beacon Relay
Roof Beacon Relay

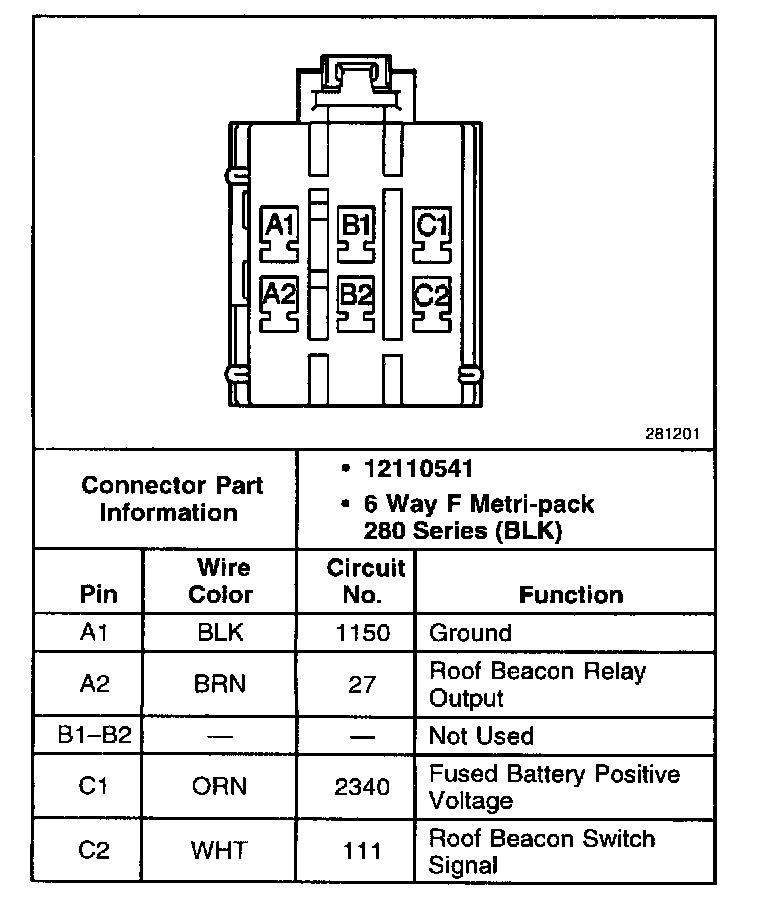

Roof Beacon Relay:
