Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
C-3 Body Wiring Harness Junction Block
C-3 Body Wiring Harness Junction Block

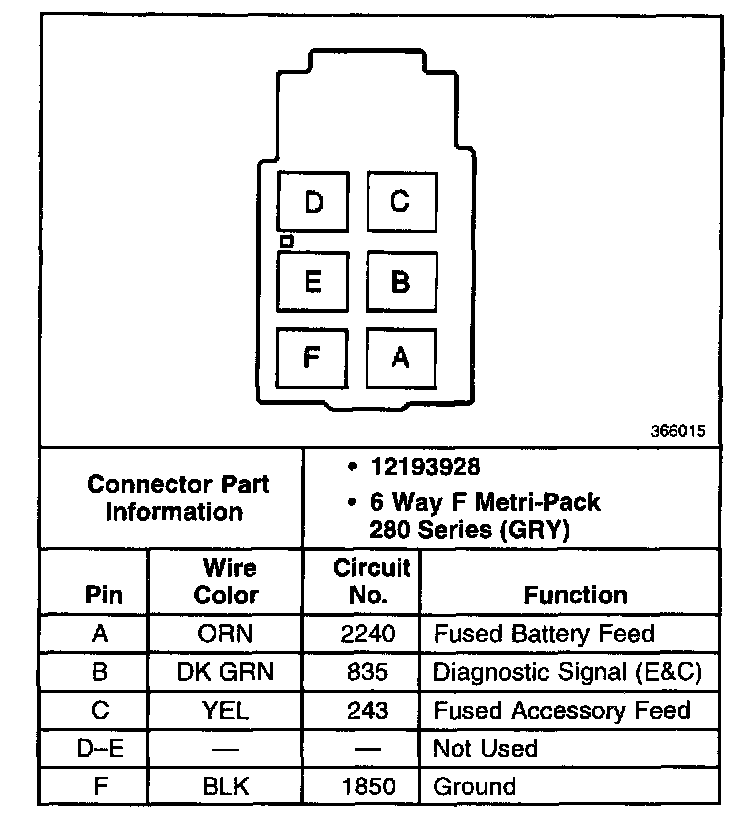

C-3 Body Wiring Harness Junction Block:
