C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Doors
>>
C-3 Cargo Door Contactor - RH
C-3 Cargo Door Contactor - RH

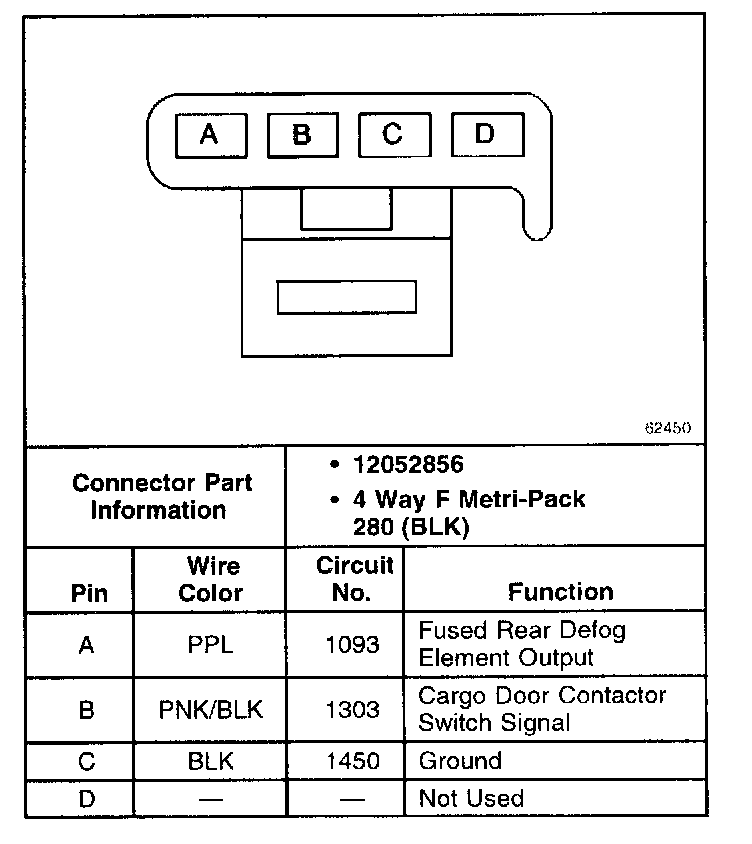

C-3 Cargo Door Contactor - RH:

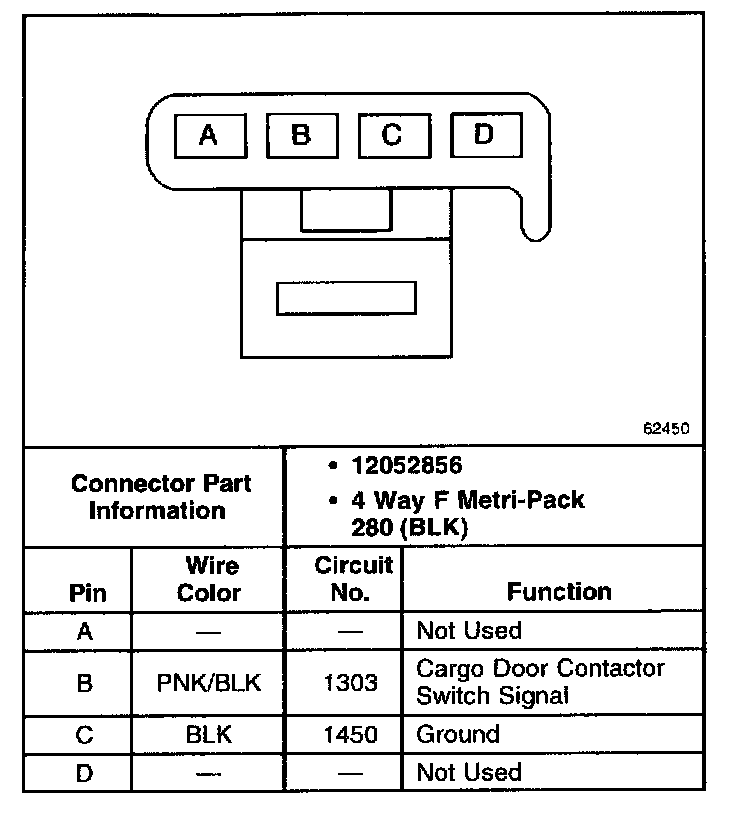

C-3 Cargo Door Contactor - RH:

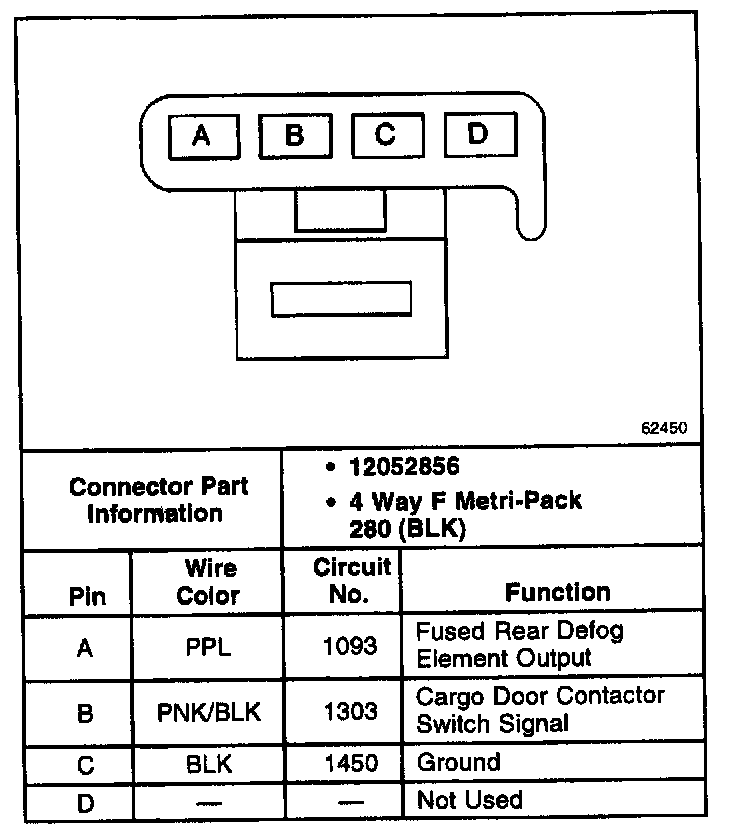

C-3 Cargo Door Contactor - RH:
