Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Discharge Air Temperature Sensor / Switch, HVAC
>>
Outside Temperature Sensor (Mirror)
Outside Temperature Sensor (Mirror)

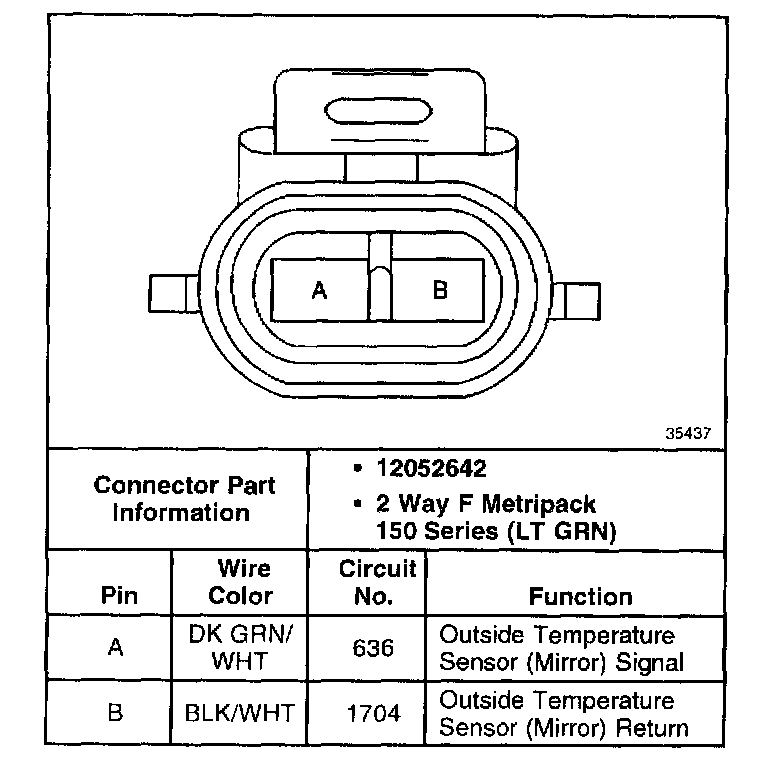

Outside Temperature Sensor (Mirror):
