Blower Motor Switch
>>
HVAC System - Automatic
>>
Rear Auxiliary Blower Motor Switch
Rear Auxiliary Blower Motor Switch

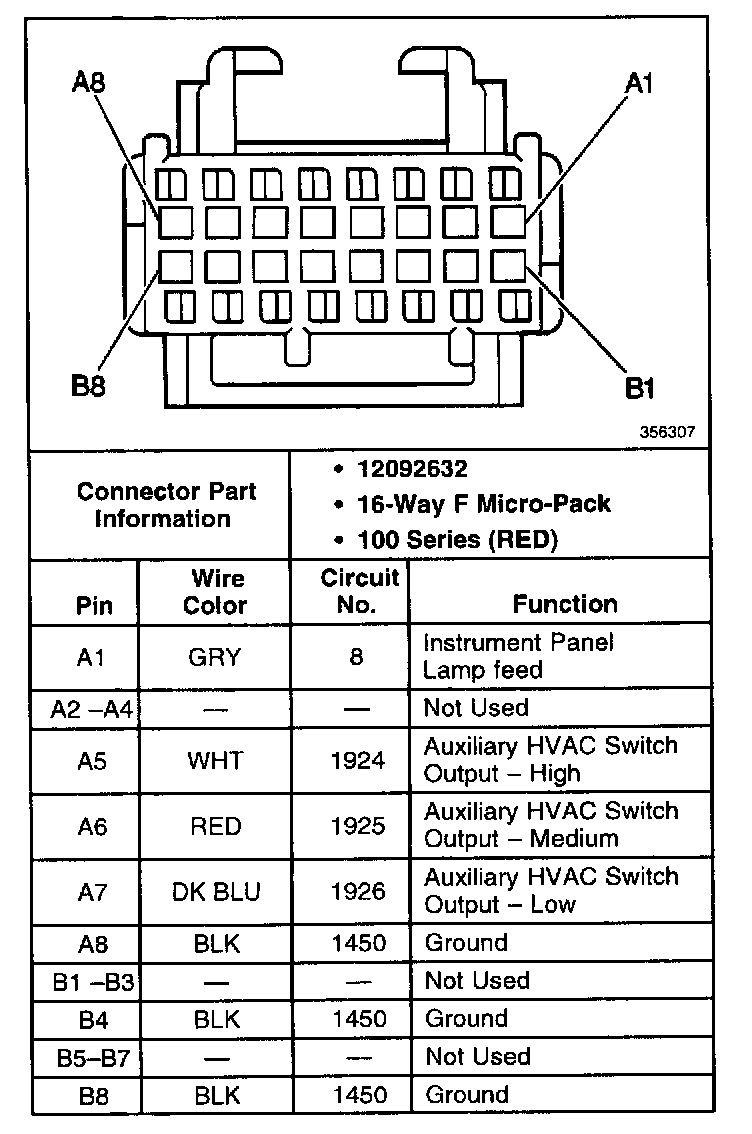

Rear Auxiliary Blower Motor Switch:
