Home
>>
Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor Relay
>>
Automatic A/C
>>

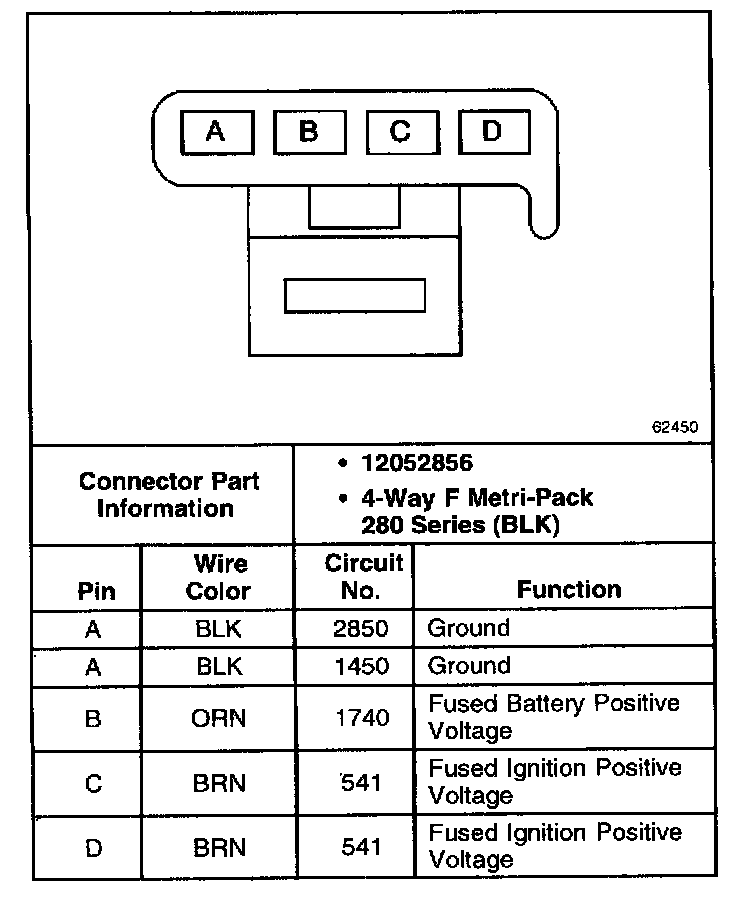

C2-Rear Auxiliary Blower Motor Resistor Relay Assembly (Manual)
C2-Rear Auxiliary Blower Motor Resistor Relay Assembly (Manual)
C2-Rear Auxiliary Blower Motor Resistor Relay Assembly (Manual):
