Third Pillar Trim Replacement

Third Pillar Trim Replacement

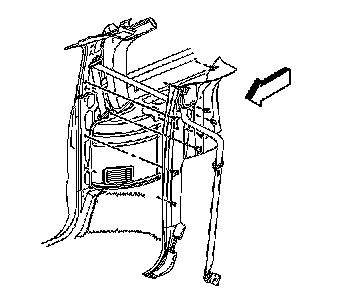

Removal Procedure





1. Remove the rear door sill trim plate.
2. Remove the lower rear seat belt bolt.
3. Remove the trim panel from the vehicle.



Installation Procedure





1. Install the body side lower trim panel to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the lower seat belt bolt.

Tighten the lower seat belt bolt to 70 N.m (52 lb in).

3. Install the rear door sill trim plate.
