Door Sill Plate Replacement

Door Sill Plate Replacement

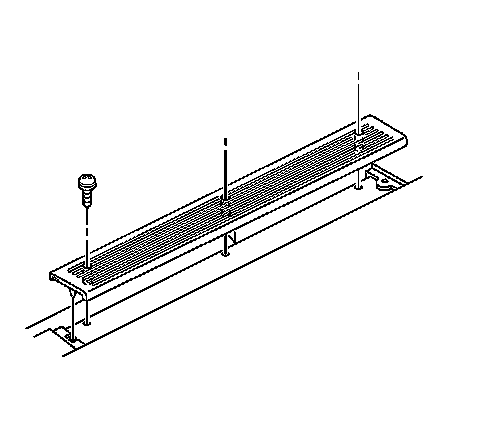

Removal Procedure





1. Remove the screws.
2. Remove the sill trim plate.



Installation Procedure





1. Install the sill trim plate.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the screws.

Tighten the door sill trim plate screws to 2 N.m (18 lb in).
