Chevy Truck
>>
2000
>>
C 7500 Kodiak V8-7.4L VIN D
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>

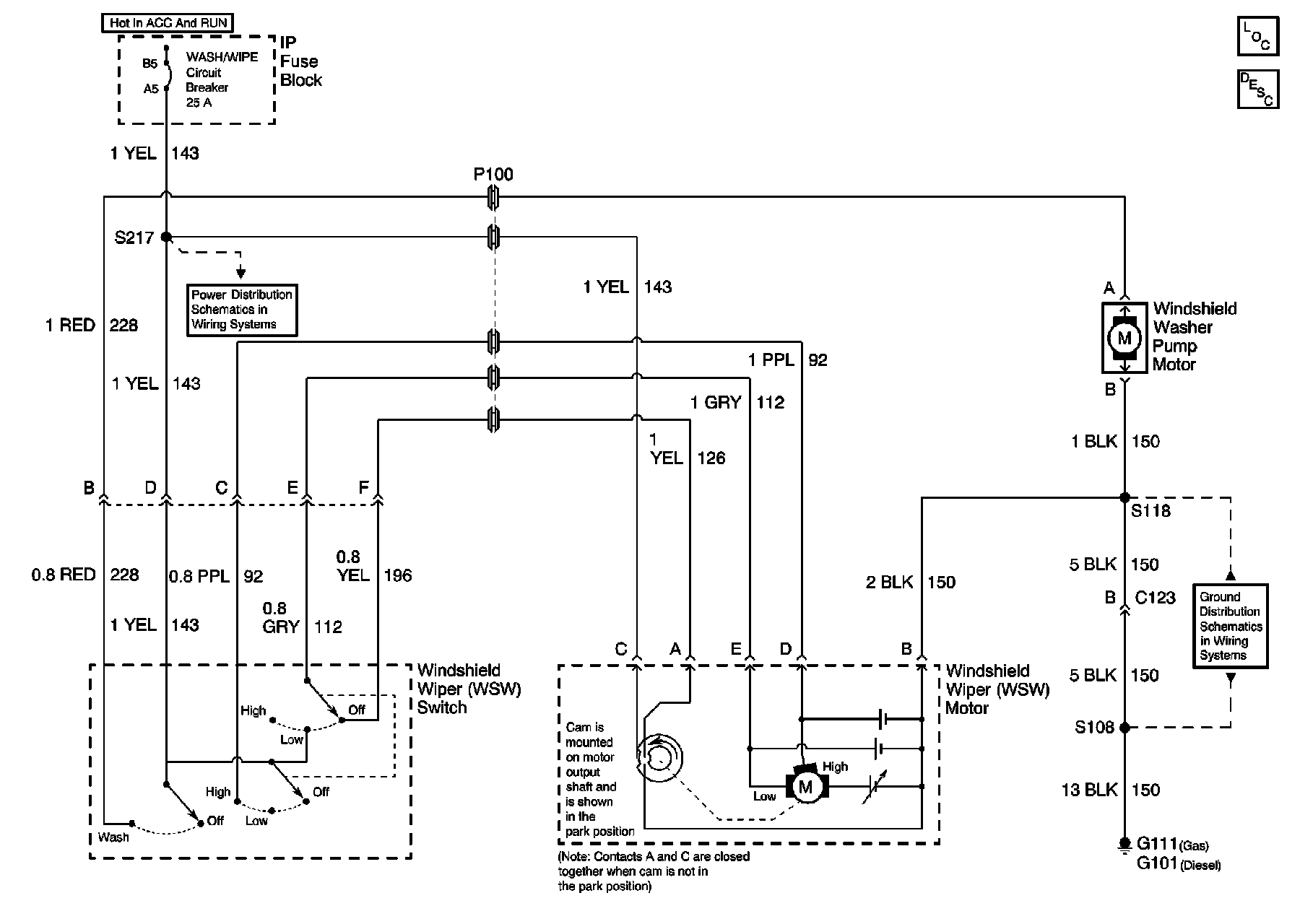

Wiper/Washer System (Standard) Schematics
Wiper/Washer System (Standard) Schematics
Wiper/Washer System (Standard) Schematics
Standard
