Home
>>
Chevy Truck
>>
2000
>>
C 7500 Kodiak V8-7.4L VIN D
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Locations
>>

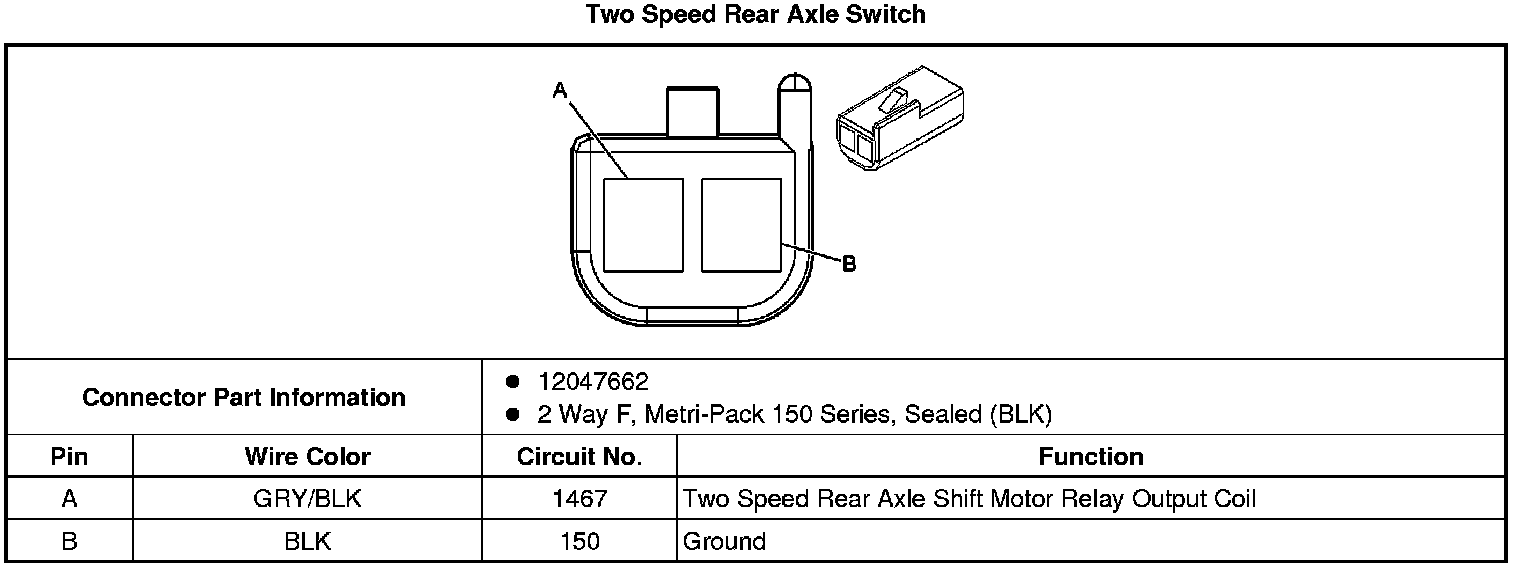

Rear Axle Connector End Views

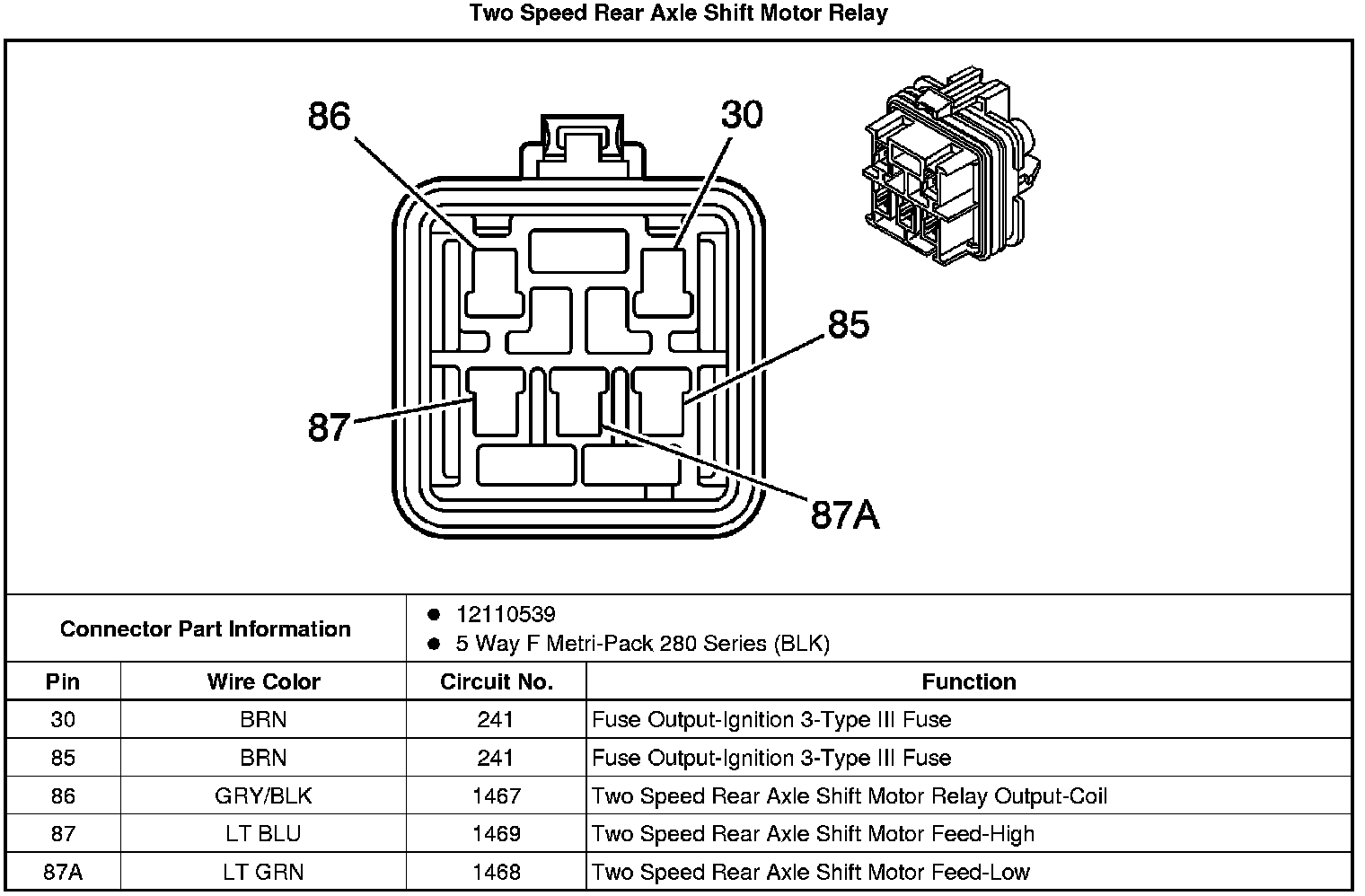

Rear Axle Connector End Views

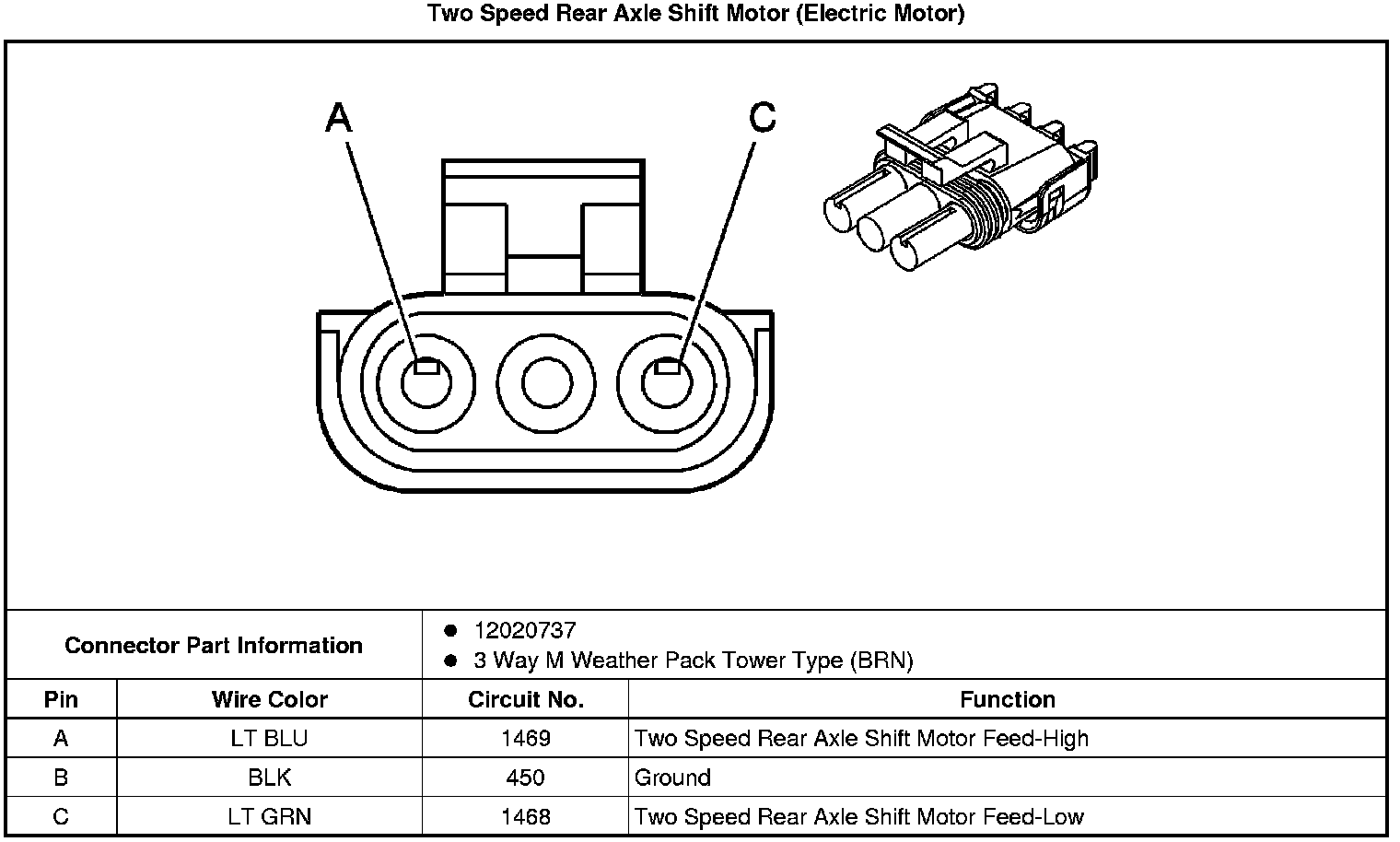

Rear Axle Connector End Views
