Torque Rod Replacement

Torque Rod Replacement

Removal Procedure

1. Block the wheels of the drive axles.

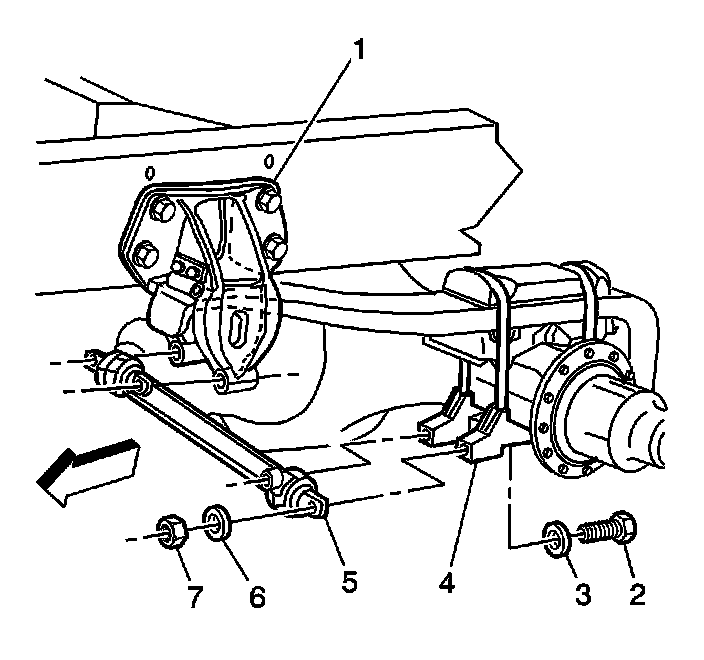

2. Remove the torque rod bar pin locknuts (7) and the washers (6) at the axle end of the torque rod (5).
3. Loosen the rebound bolt locknut in the spring hanger (1).

Important: Note the number of shims. Reinstall the shims in the same manner in order to avoid affecting the alignment.


4. Remove the following components at the spring hanger ends of the torque rod:

- The torque rod bar pin locknuts (7)
- The bolts
- The washers (6)
- The alignment shims

Installation Procedure




1. Position the new or rebushed torque rod into the spring seat (4).
2. Install the washers (6) and the torque rod locknuts (7). Tighten the locknuts by hand.
3. Position the torque rod on the forward face of the spring hanger legs.

Notice: Refer to Fastener Notice .

4. Install the following components:

* The bolts
* The washers
* The alignment shims
* The locknuts

* Tighten the torque rod locknuts to 241 Nm (178 lb ft).
* Tighten the rebound bolt locknuts to 82 Nm (61 lb ft).
* Tighten the torque rod locknuts, at the axle end of the torque rod, to 241 Nm (178 lb ft).

5. Unblock the wheels.
