Standard

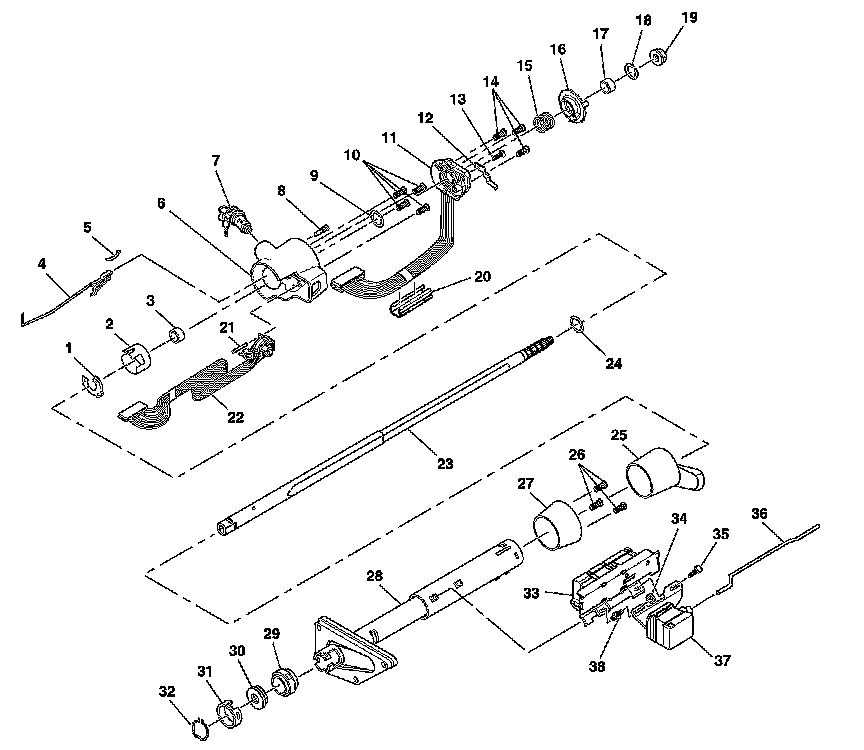

Steering Column Disassembled View (Standard Floor Shift)

Standard Steering Column




1 - Upper Bearing Retainer
2 - Bearing Retaining Bushing
3 - Bearing Assembly
4 - Ignition Switch Actuator Assembly
5 - Rack Preload Spring
6 - Steering Column Housing Assembly
7 - Steering Column Lock Cylinder Set
8 - Lock Retaining Screw
9 - Thrust Washer
10 - Hexagon Washer Head Tapping Screw
11 - Turn Signal Switch Assembly
12 - Switch Actuator Arm Assembly
13 - Round Washer Head Screw
14 - Binding Head Cross Recess Screw
15 - Upper Bearing Spring
16 - Turn Signal Cancel Cam Assembly
17 - Steering Shaft\Spacer
18 - Bearing Retainer
19 - Hexagon Jam Nut
20 - Wiring Protector
21 - Switch Actuator Pivot Pin
22 - Pivot and Pulse Switch Assembly
23 - Steering Shaft Assembly
24 - Bearing Retainer
25 - Gear Shift Bowl
26 - Pan Head 6-Lobed Soc Tap Screw
27 - Shift Bowl Shroud
28 - Steering Column Jacket Assembly
29 - Adapter and Bearing Assembly
30 - Lower Bearing Adapter
31 - Bearing Adapter Retainer
32 - Lower Bearing Adapter Clip
33 - Ignition Switch Assembly
34 - Hexagon Nut
35 - Washer Head Screw
36 - Dimmer Switch Actuator Rod
37 - Dimmer Switch Assembly
38 - Dimmer and Ignition Switch Mounting Stud
