Chevy Truck
>>
2000
>>
C 7500 Kodiak V8-7.4L VIN D
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>

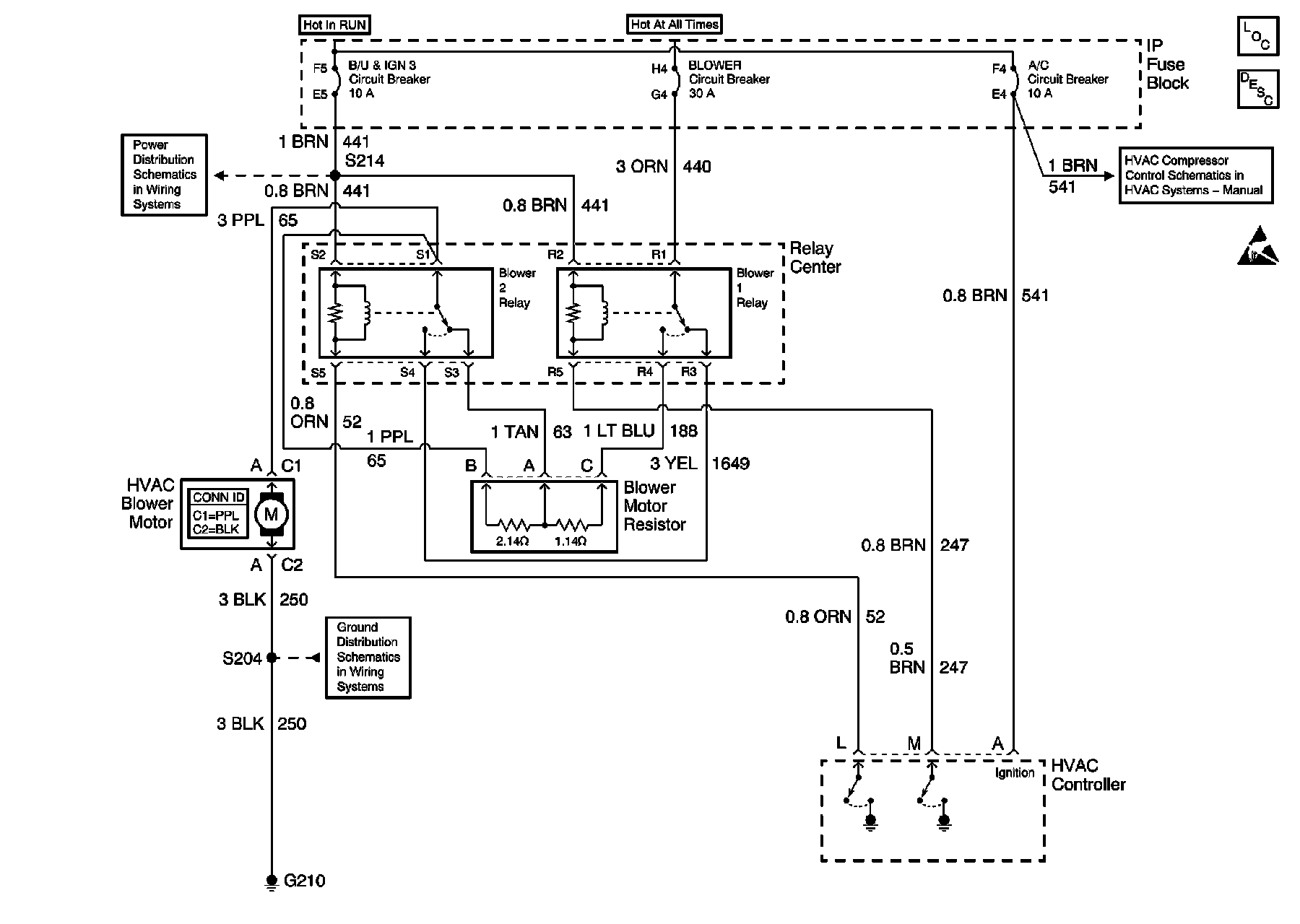

HVAC Blower Control Schematics (A/C)
HVAC Blower Control Schematics (A/C)
HVAC Blower Control Schematics (A/C)
