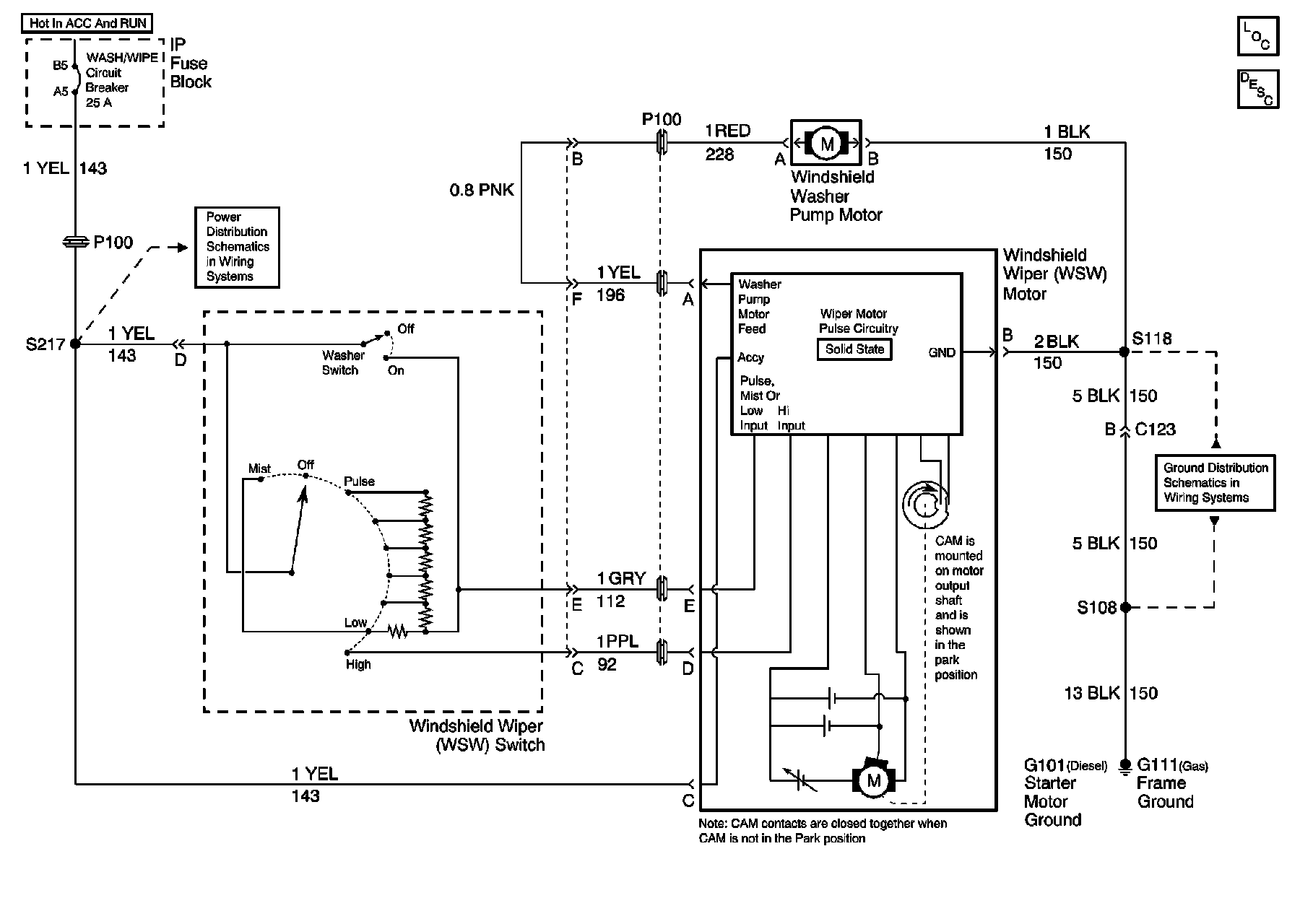

Wiper/Washer System (Pulse) Schematics
Wiper/Washer System (Pulse) Schematics
Wiper/Washer System (Pulse) Schematics
Pulse
