Chevy Truck
>>
2000
>>
C 7500 Kodiak V8-7.4L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
System Diagram
>>

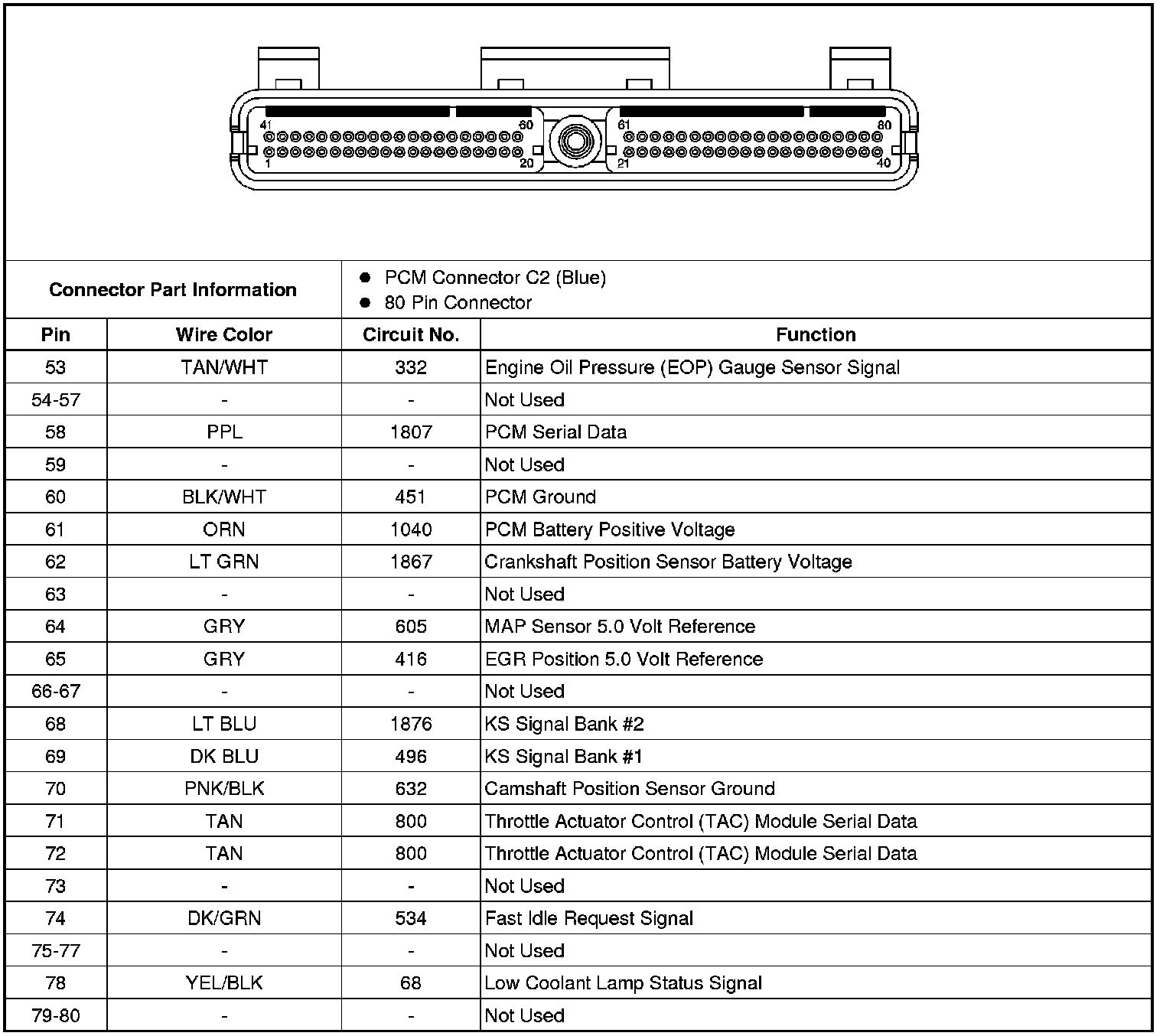

Powertrain Control Module Connector End Views

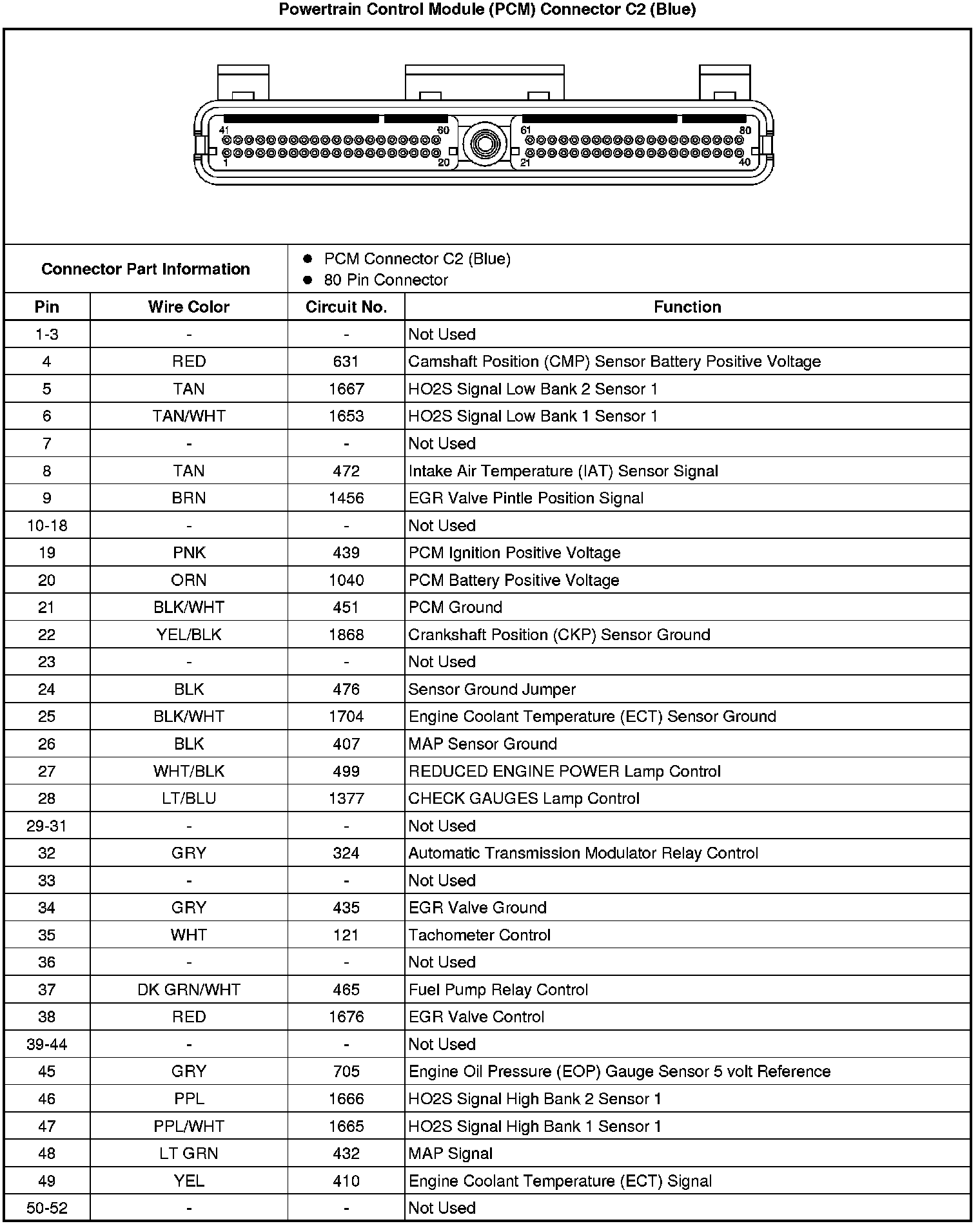

Powertrain Control Module Connector End Views

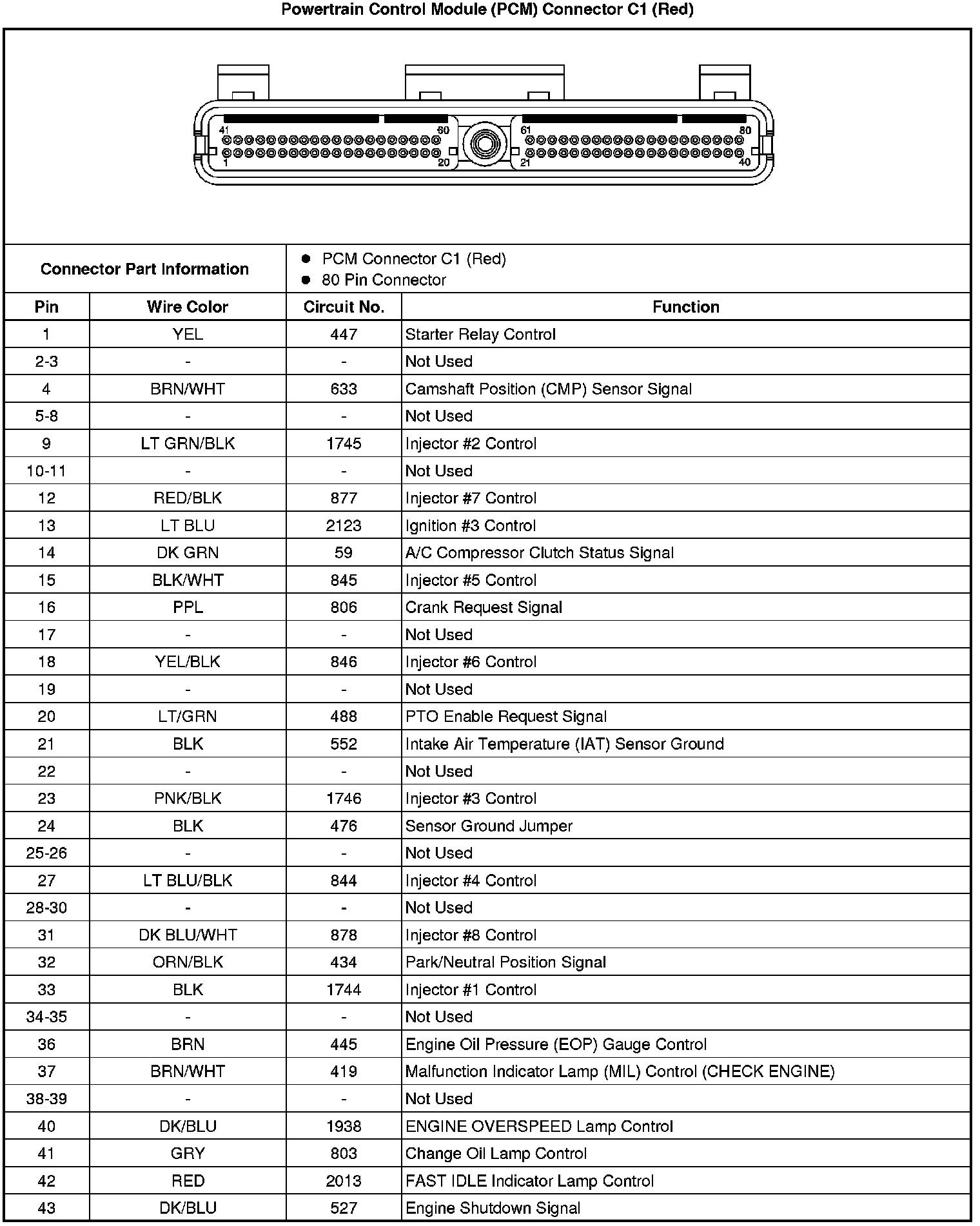

Powertrain Control Module Connector End Views
