Chevy Truck
>>
2000
>>
C 7500 Kodiak V8-7.4L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

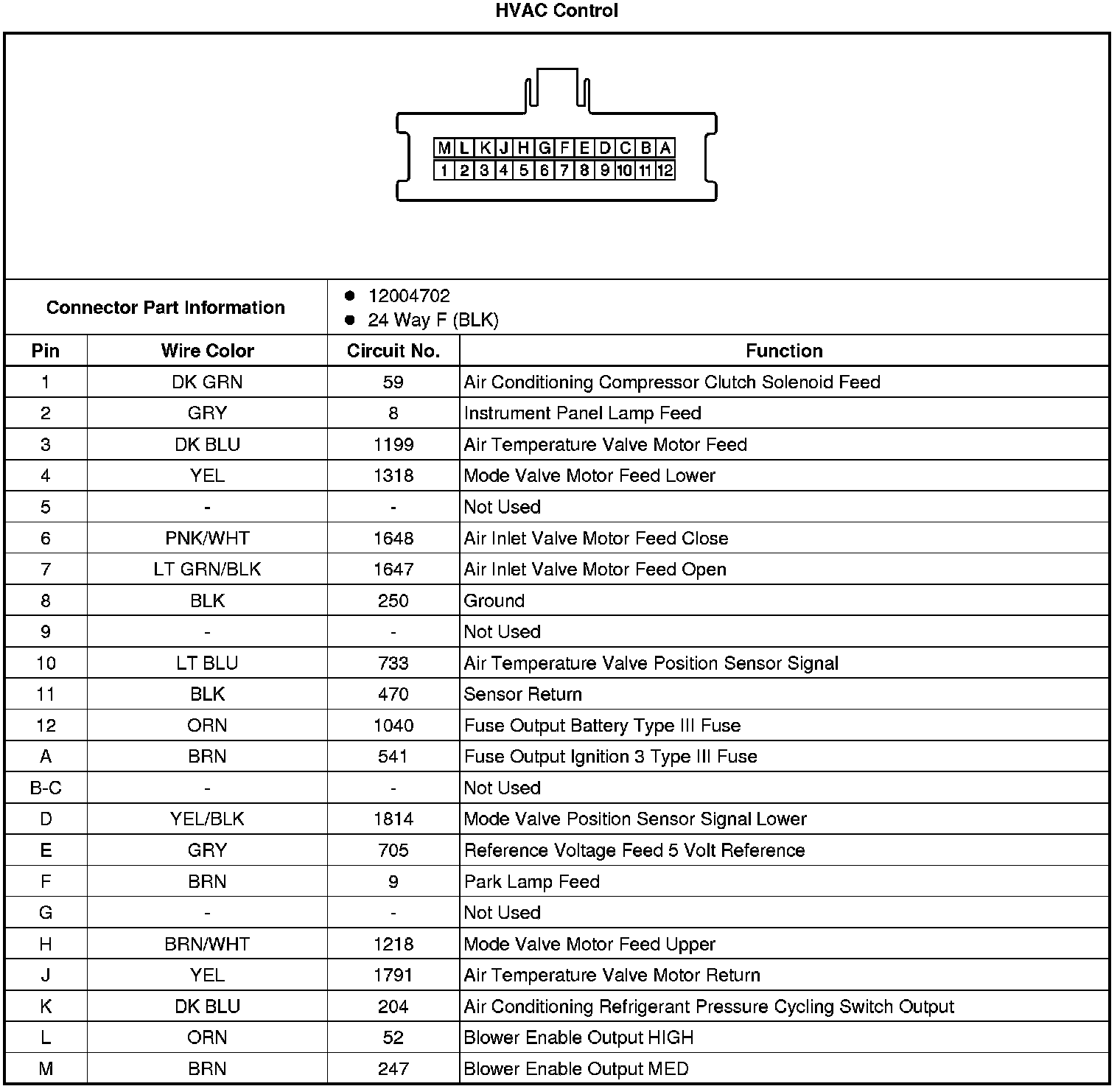

Control Assembly, HVAC
Control Assembly, HVAC

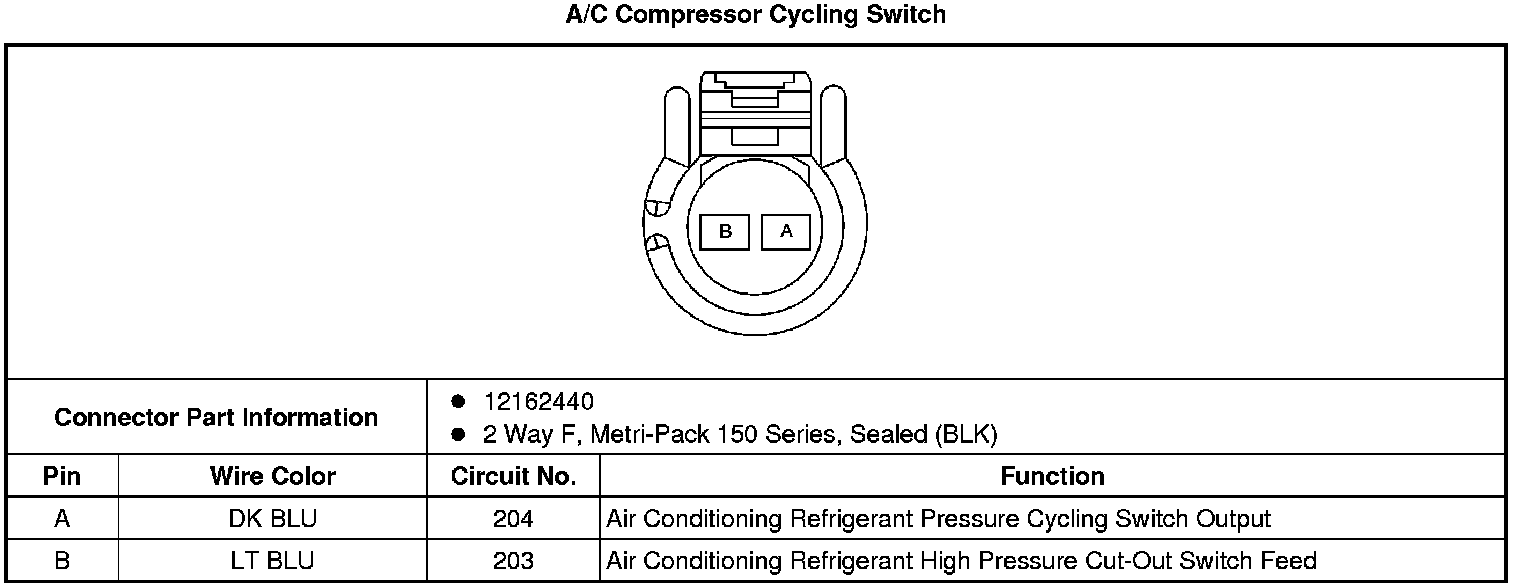

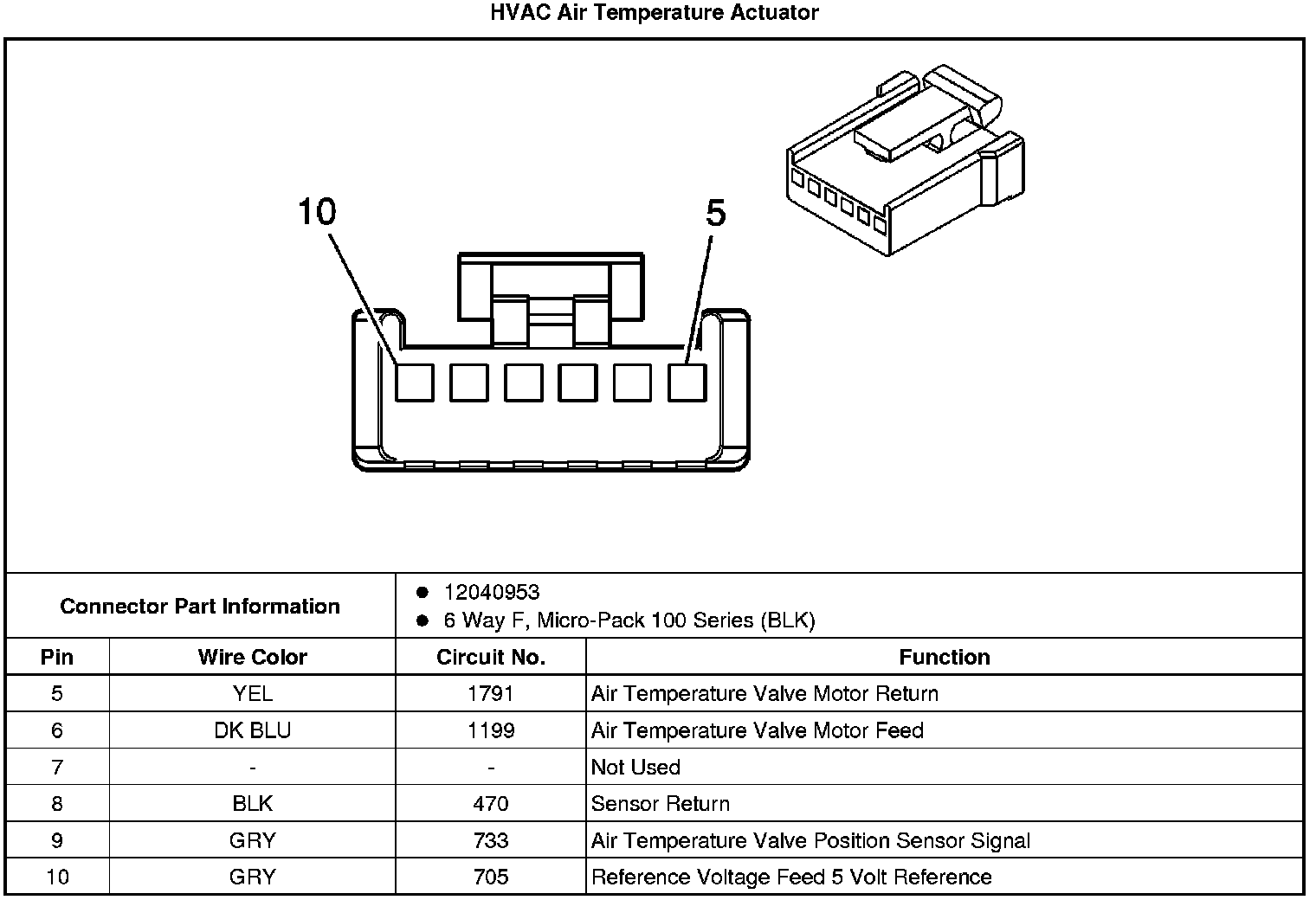

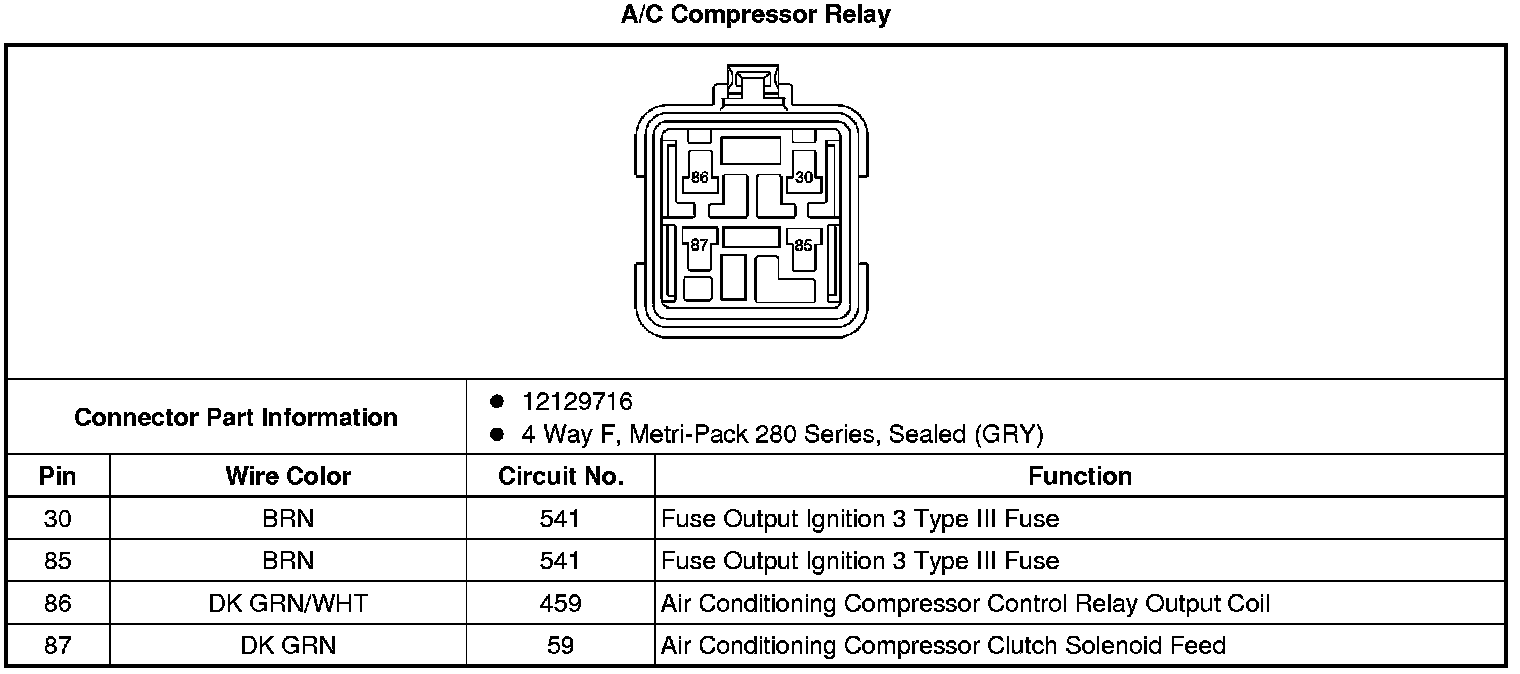

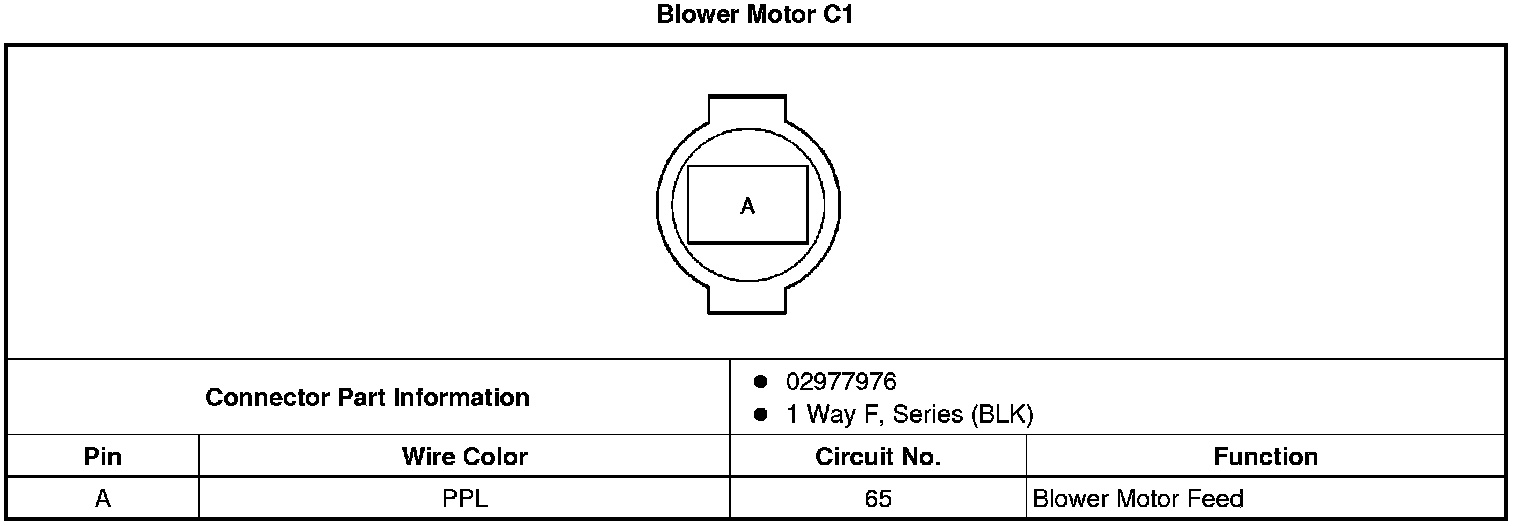

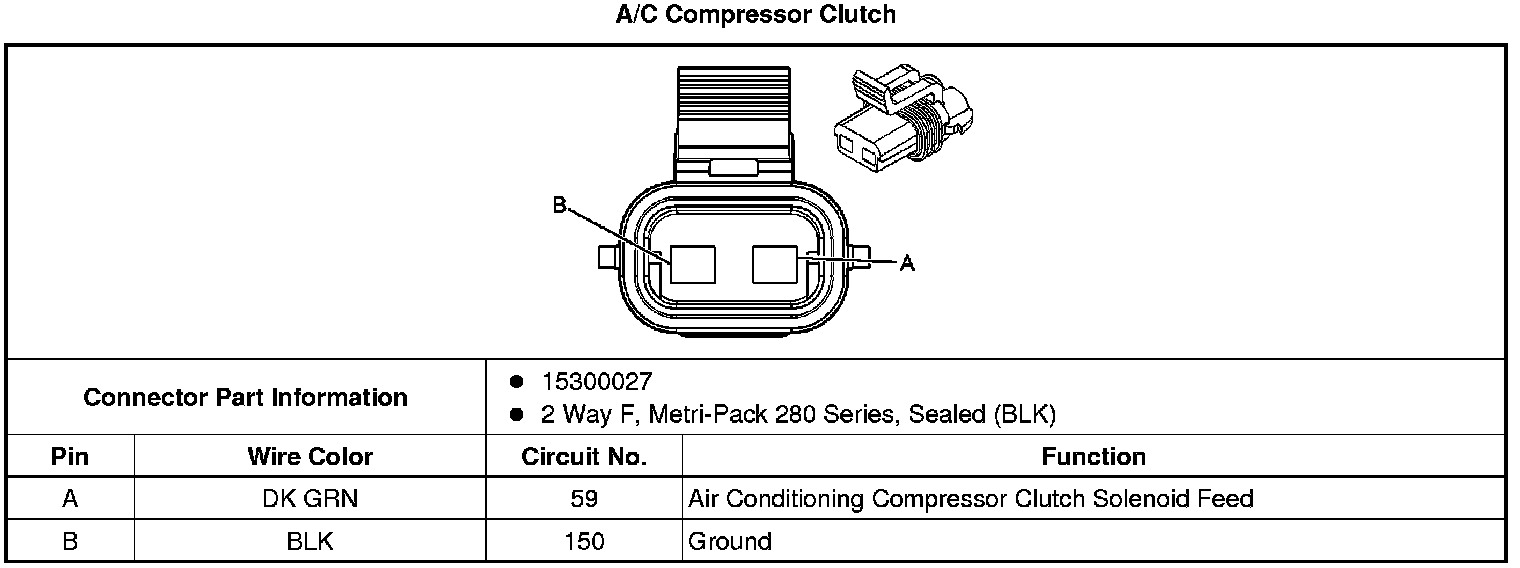

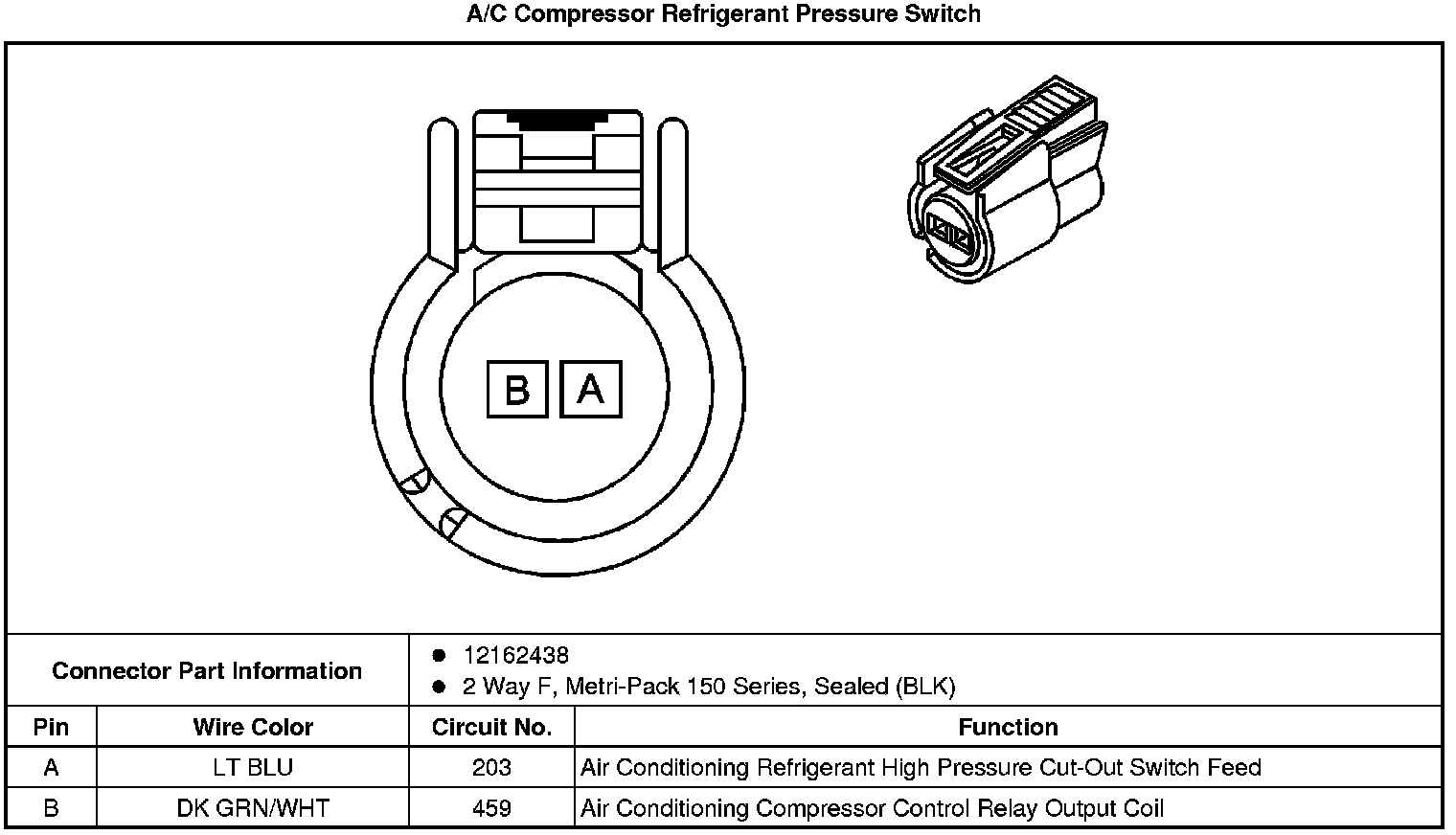

HVAC Connector End Views
