Towing Hook / Bracket: Service and Repair

Tow Hook Replacement

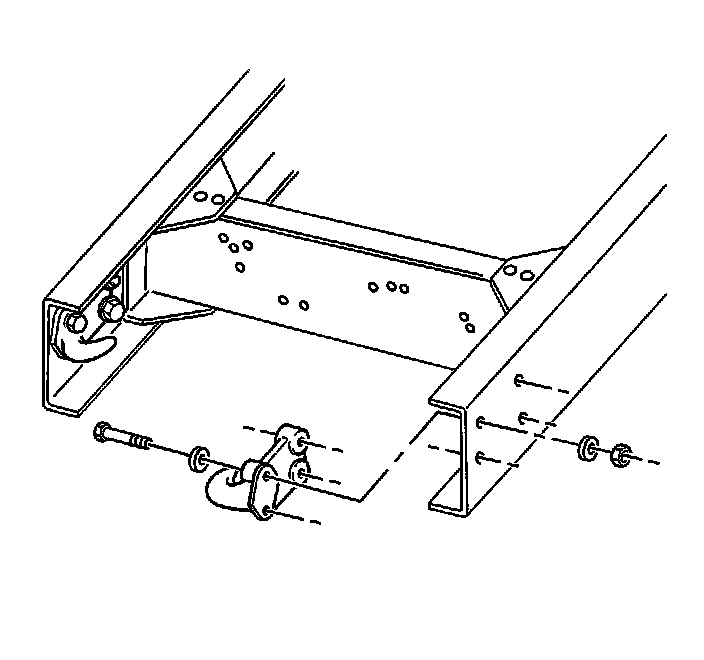

Removal Procedure




1. Remove the tow hook to frame bolts, washers, and nuts.




2. Remove the tow hook.
The bumper brackets will remain in place unless both tow hooks and hardware are removed.

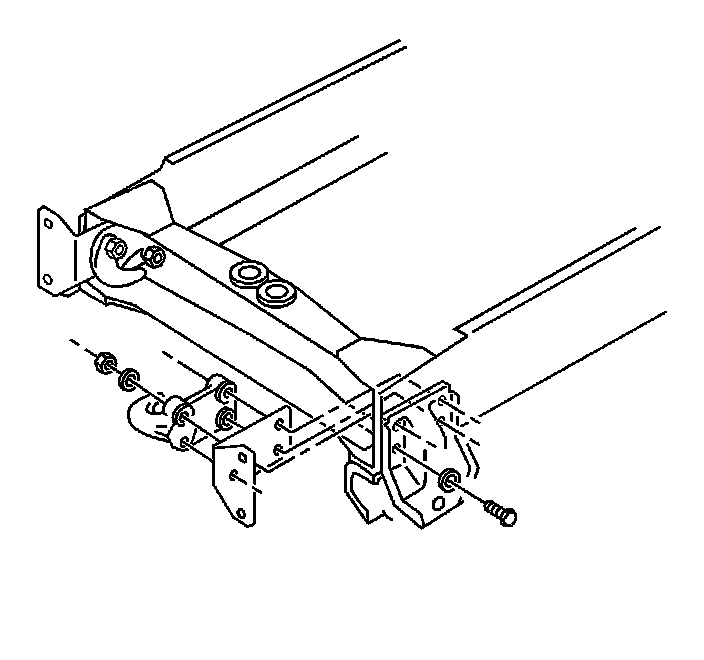

Installation Procedure




1. Install the tow hooks and brackets to the frame rails.
The bumper brackets will remain in place unless both tow hooks and hardware are removed.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the hook to frame bolts, washers, and nuts.

Tighten the nuts to 163 Nm (120 lb ft).
