Sun Visor: Service and Repair

Sunshade Replacement

Removal Procedure

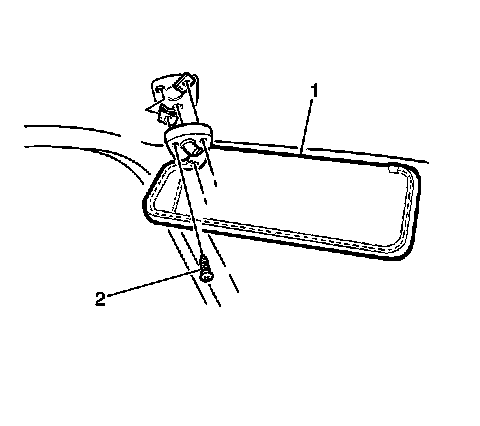

1. Remove the sunshade screws (2).
2. Remove the sunshade (1).

Installation Procedure




1. Install the sunshade (1) to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the sunshade screws (2).

Tighten the sunshade screws to 2 Nm (18 lb in).
