P0704

DTC P0704 Clutch Switch Circuit

Refer to Engine Controls Schematics CPP and Fast Idle Switches .

Circuit Description

The clutch switch is a normally closed switch (clutch pedal released). The powertrain control module (PCM) detects an ignition voltage on the clutch switch circuit when the clutch switch is closed. The PCM detects 0 volts on the clutch switch circuit when the clutch switch is open (clutch pedal depressed).

This DTC determines if the transmission clutch switch has failed by looking for a clutch switch transition during a predetermined drive cycle.

Conditions for Running the DTC

No VSS DTCs

Conditions for Setting the DTC

* The vehicle speed goes from 0 mph to more than 24 mph and back to 0 mph for 2 seconds without the PCM detecting a clutch transition.
* This must occur 4 times before the diagnostic reports a fault.

Action Taken When the DTC Sets

* The PCM stores the DTC information into memory when the diagnostic runs and fails.
* The malfunction indicator lamp (MIL) will not illuminate.
* The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.

Conditions for Clearing the MIL/DTC

* A last test failed (current DTC) clears when the diagnostic runs and does not fail.
* 40 consecutive warm-up cycles
A History DTC clears after 40 consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.
* Using a scan tool

Diagnostic Aids

Important: Remove any debris from the PCM/TAC module connector surfaces before servicing the PCM/TAC module. Inspect the PCM/TAC module connector gaskets when diagnosing/replacing the modules. Ensure that the gaskets are installed correctly. The gaskets prevent water intrusion into the PCM/TAC modules.


* Inspect the PCM/TAC module connector gaskets. Refer to Powertrain Control Module Controlled Tachometer Diagnosis Powertrain Control Module Controlled Tachometer Diagnosis.
* Inspect for the causes of intermittents. The following conditions may cause an intermittent:

- Poor connections
- Inadequate terminal tension
- Corrosion
- Misrouted or damaged harness
- Rubbed through wire insulation
- Broken wire inside the insulation

* Inspect for adequate terminal tension. Refer to Wiring Repairs Wiring Repairs in Wiring Systems.
* Using Freeze Frame and Failure Records data may aid in locating an intermittent condition. If you cannot duplicate the DTC, the information included in the Freeze Frame and Failure Records data can aid in determining how many miles since the DTC set. The Fail Counter and Pass Counter can also aid determining how many ignition cycles the diagnostic reported a pass and a fail. Operate the vehicle within the same Freeze Frame conditions (RPM, load, vehicle speed, temperature etc.) that you observed. This will isolate when the DTC failed. For an intermittent, refer to Lack of Power, Sluggishness, or Sponginess Lack of Power, Sluggishness, or Sponginess.
* Inspect for further causes of intermittents. Refer to Symptoms Symptoms.

Test Description

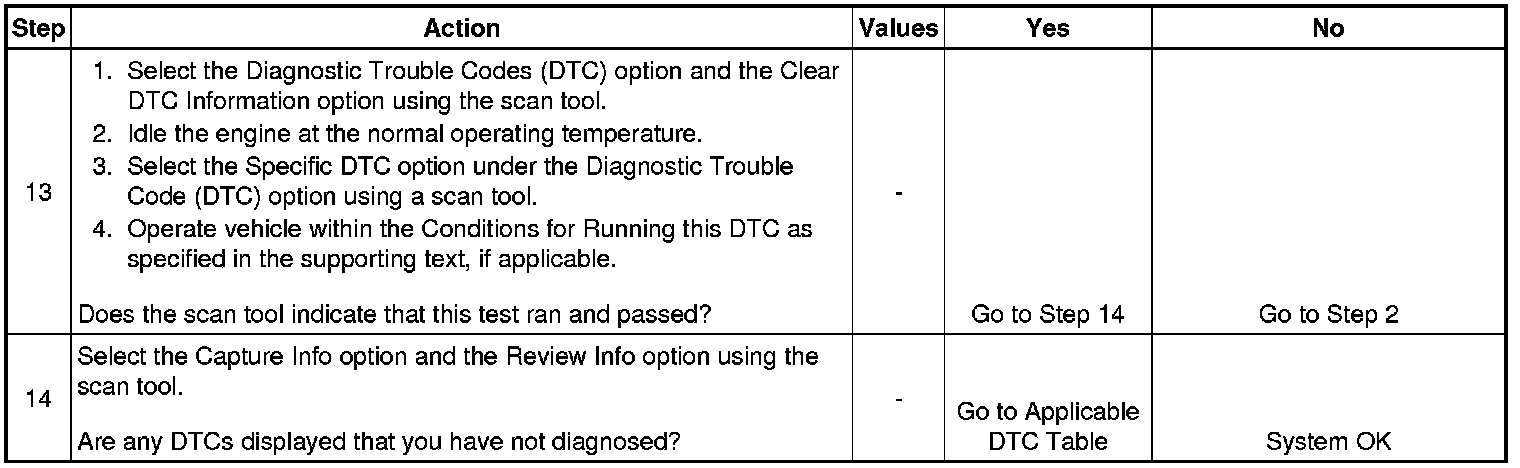

The number below refers to the step number on the diagnostic table.
2. This step determines if the fault is present.
