Chevy Truck
>>
2000
>>
C 2500 Truck 2WD V8-454 7.4L VIN J SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Restricted Exhaust System Check
Restricted Exhaust System Check

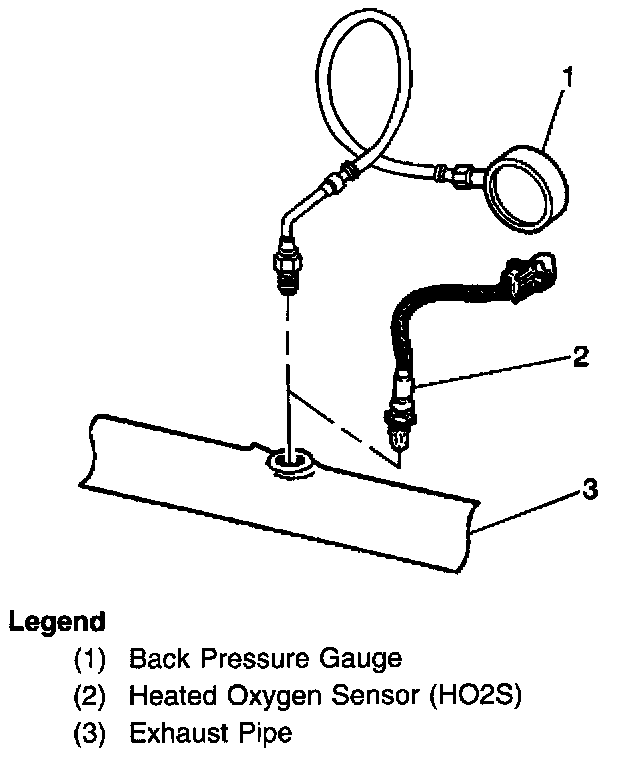

Schematic:

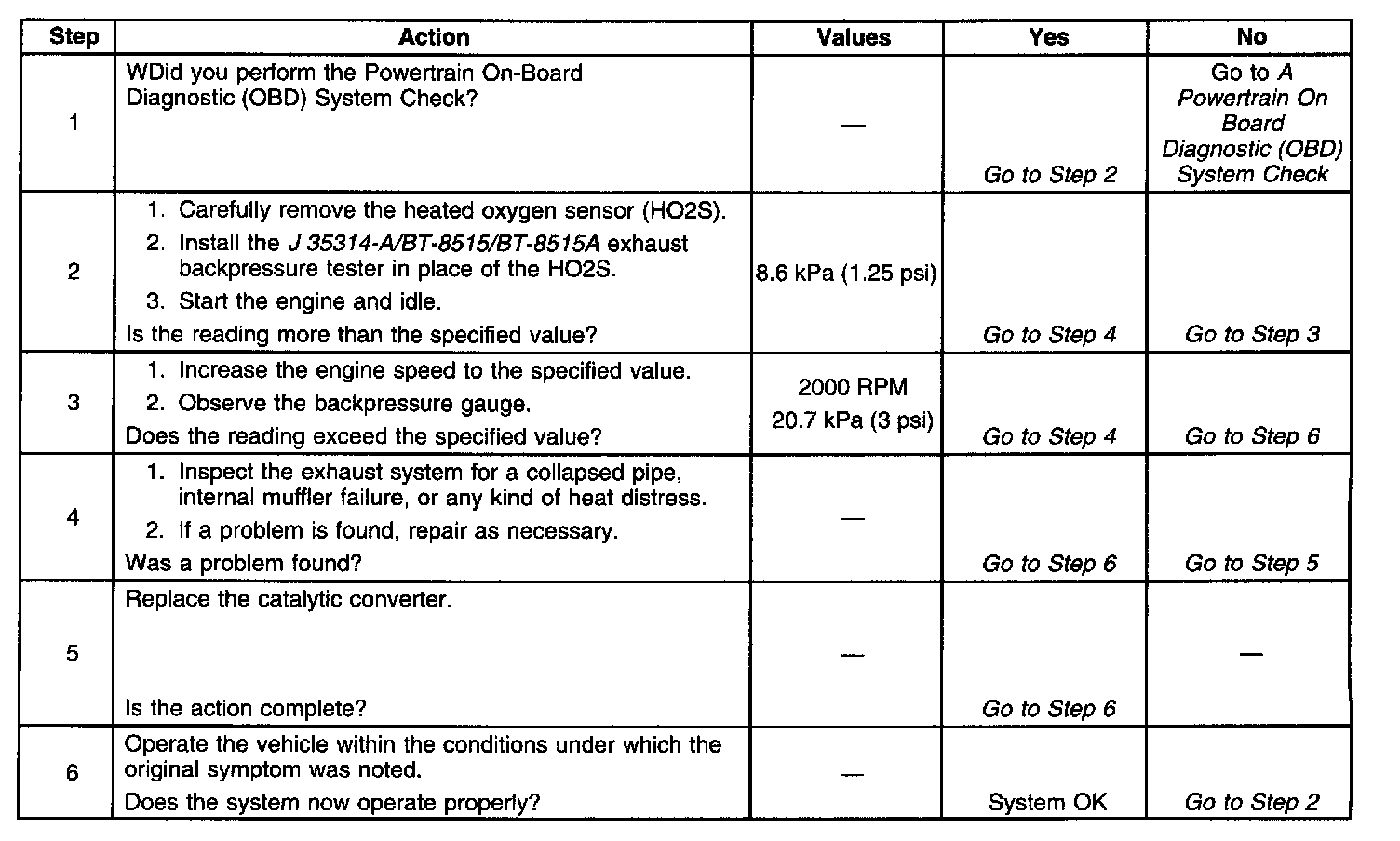

Diagnostic Chart:
