Chevy Truck
>>
2000
>>
C 2500 Suburban 2WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>

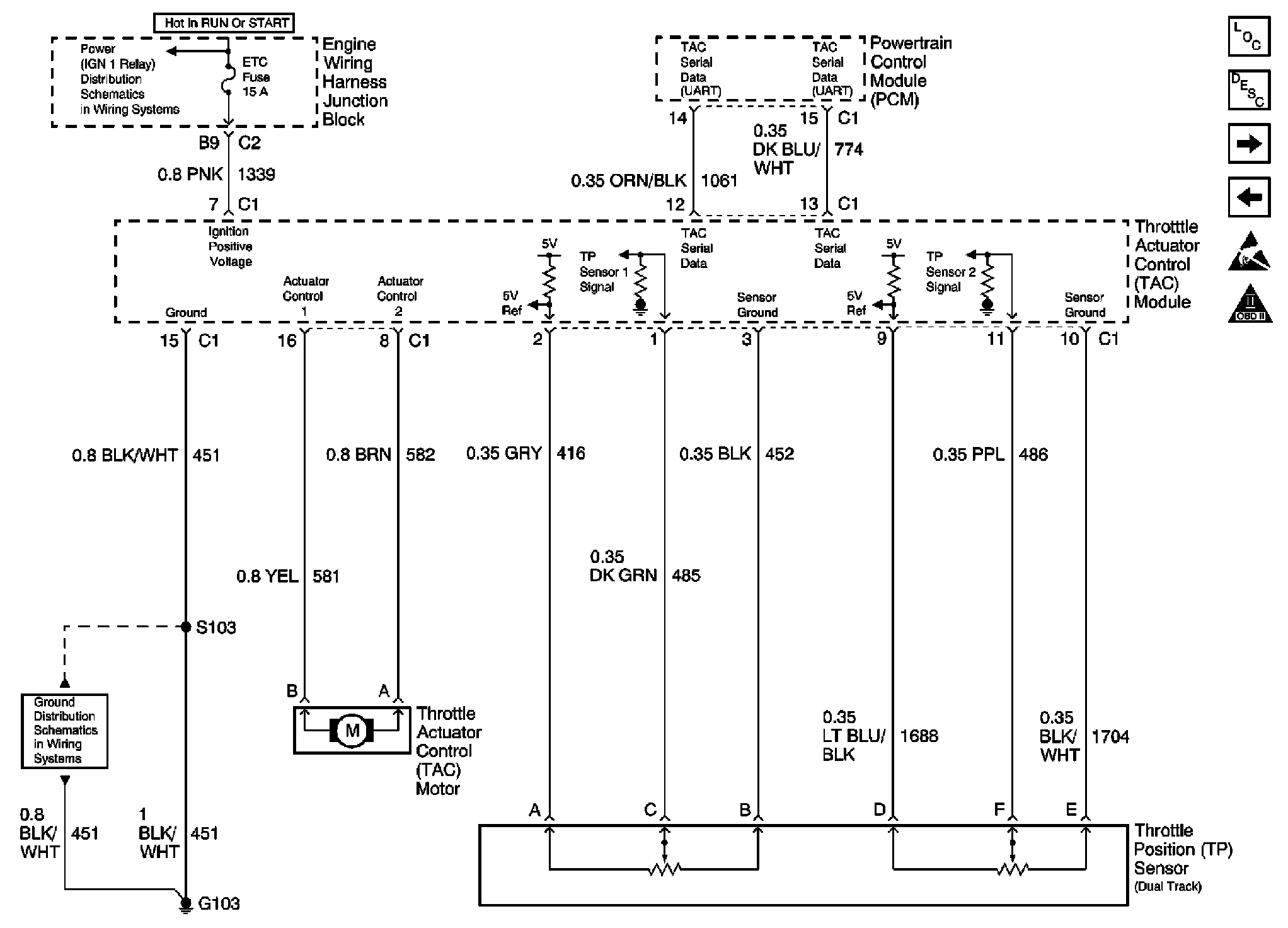

Throttle Postion Sensor ( Dual Track )
Throttle Postion Sensor ( Dual Track )
