Home
>>
Chevy Truck
>>
2000
>>
C 2500 Suburban 2WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>

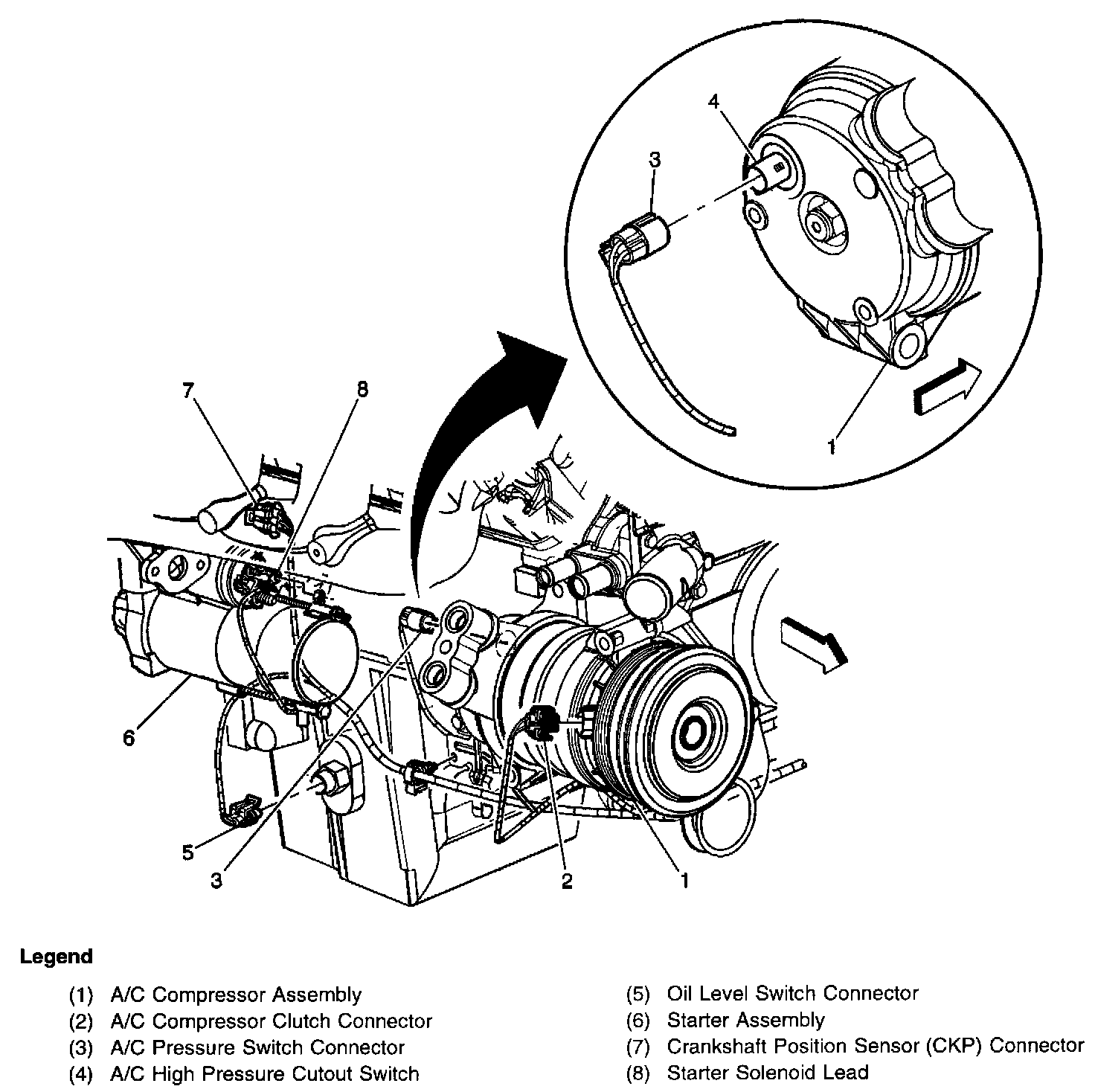

A/C Compressor Assembly
A/C Compressor Assembly
Locations View:
