Switches, TFT Sensor, PC SOL Valve
Switches, TFT Sensor, PC SOL Valve

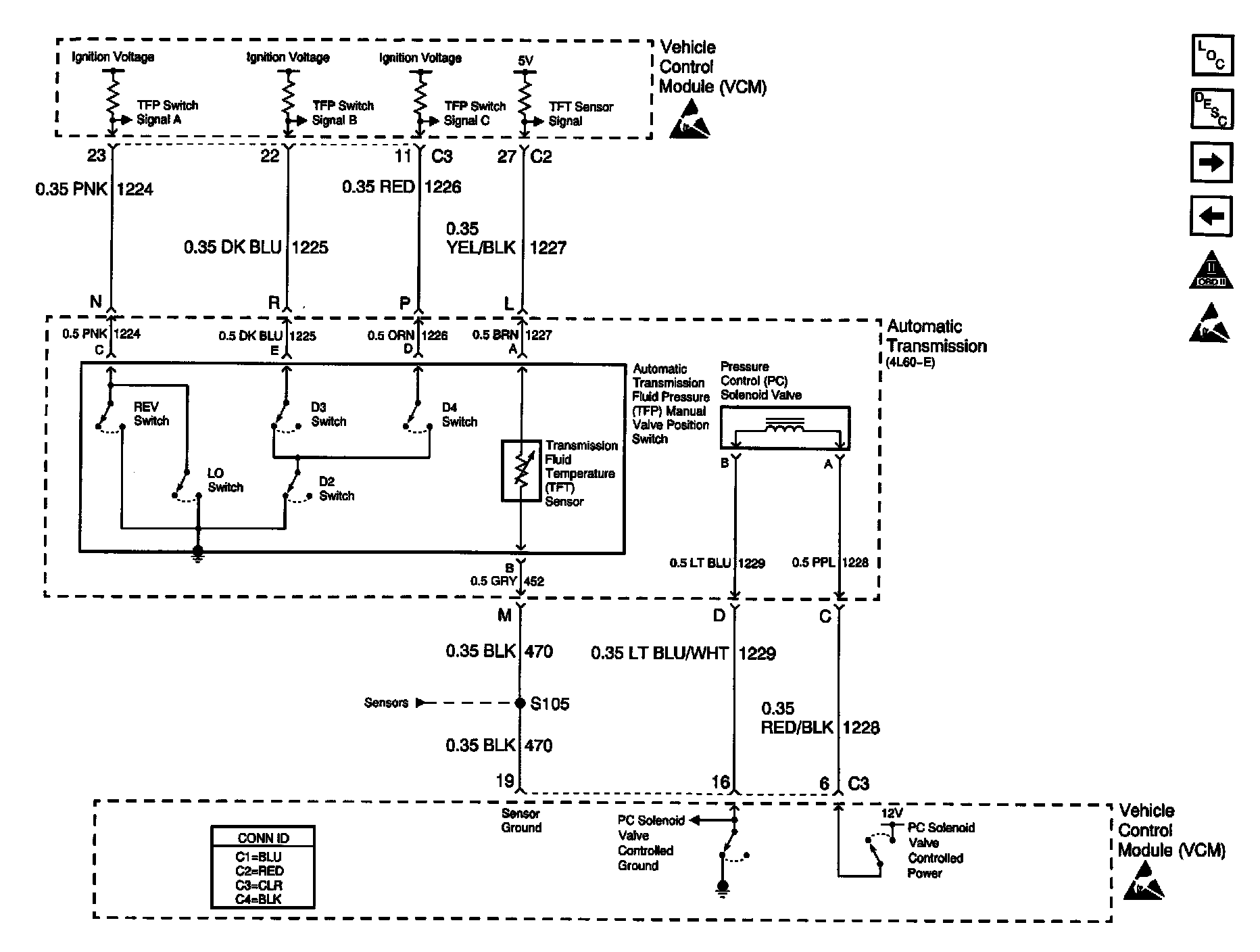

Engine Controls Schematics: Auto Trans Switches, TFT Sensor, PC SOL Valve:
