Chevy Truck
>>
2000
>>
C 1500 Truck 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
VSS Circuit, EBCM, VCM
VSS Circuit, EBCM, VCM

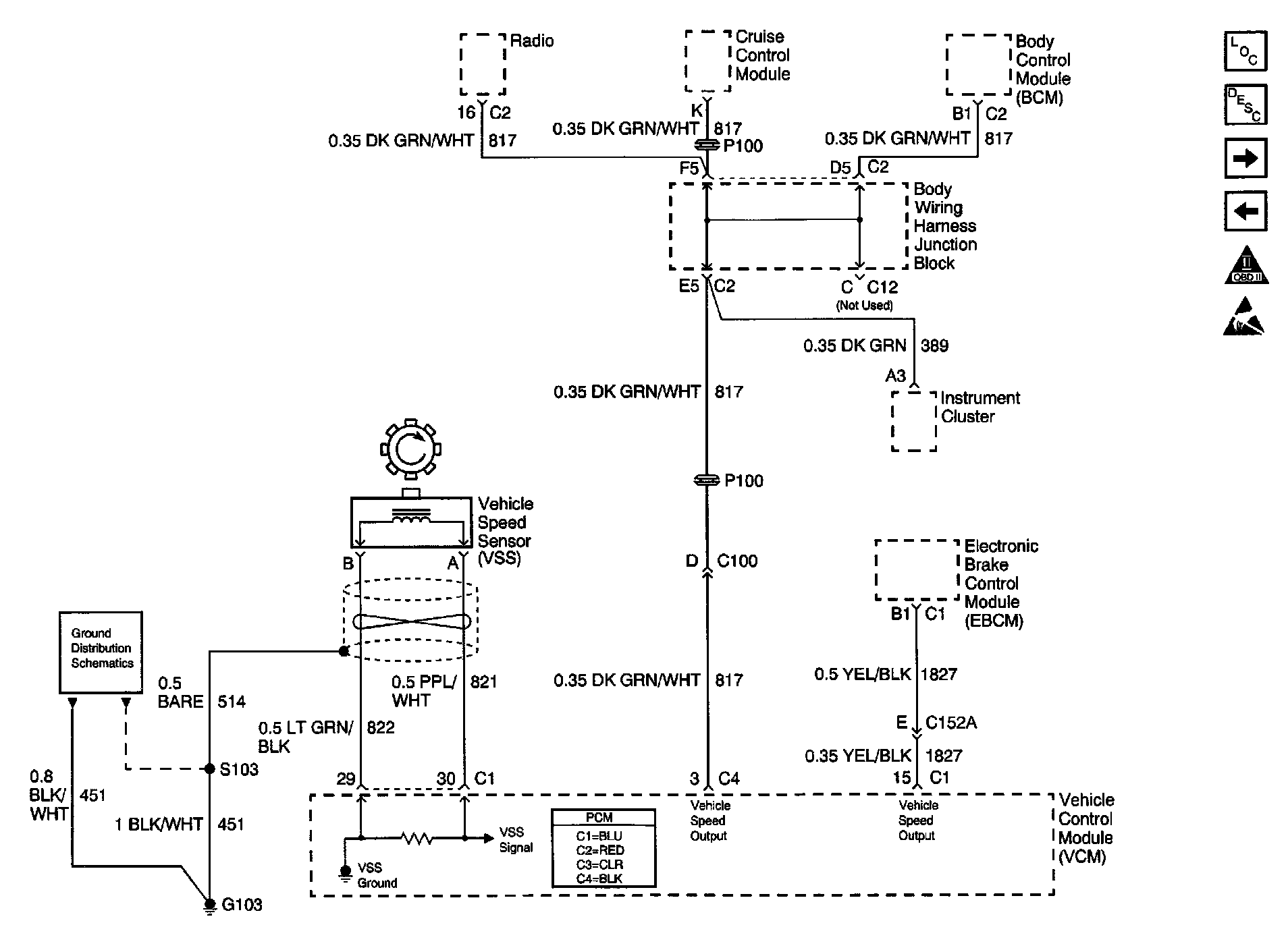

Engine Controls Schematics: VSS Circuit, EBCM, VCM:
