Radiator Hose Replacement - Inlet

Removal Procedure





1. Drain the cooling system. Refer to Draining and foiling Cooling System.
2. Remove the air inlet duct. Refer to Air Cleaner Assembly Replacement in Powertrain Management.

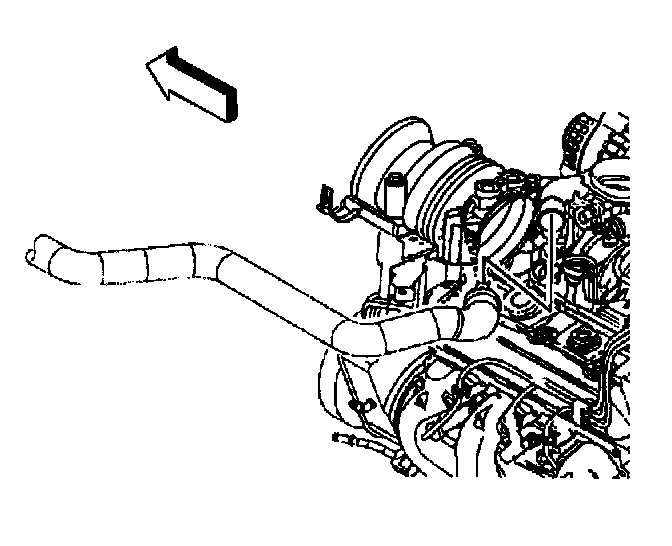

3. Remove the radiator inlet hose from the support.

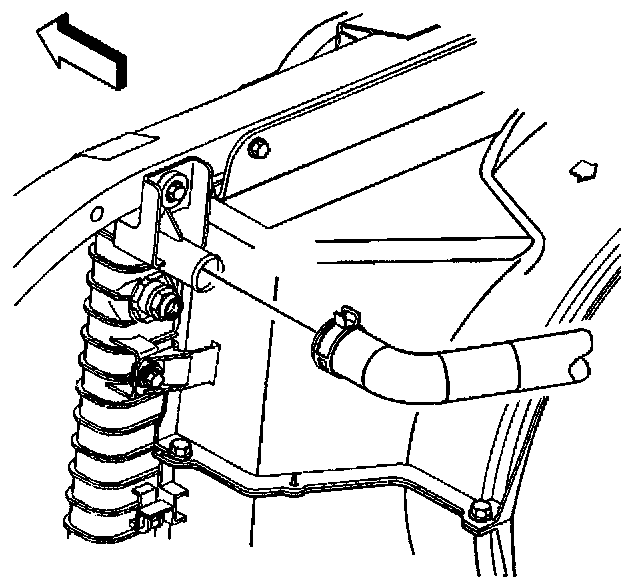

4. Remove the radiator inlet hose from the radiator.





5. Remove the radiator inlet hose from the thermostat housing.
6. Remove the radiator inlet hose.

Installation Procedure

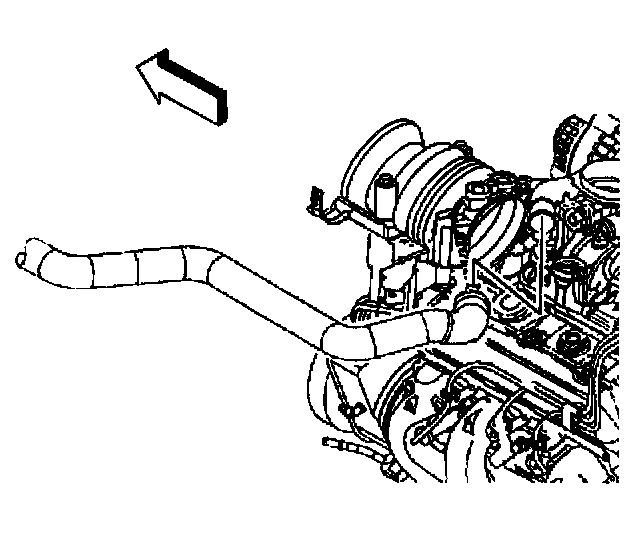

1. Install the radiator inlet hose to the thermostat housing.





2. Install the radiator inlet hose to the radiator.
3. Install the radiator inlet hose to the support.
4. Install the air inlet duct. Refer to Air Cleaner Assembly Replacement in Powertrain Management.
5. Fill the cooling system. Refer to Draining and Filling Cooling System.
6. Test the system for leaks. Refer to Cooling System Leak Testing.
