AIR Relay, AIR Pump, G104, VCM, IGN E Fuse
AIR Relay, AIR Pump, G104, VCM, IGN E Fuse

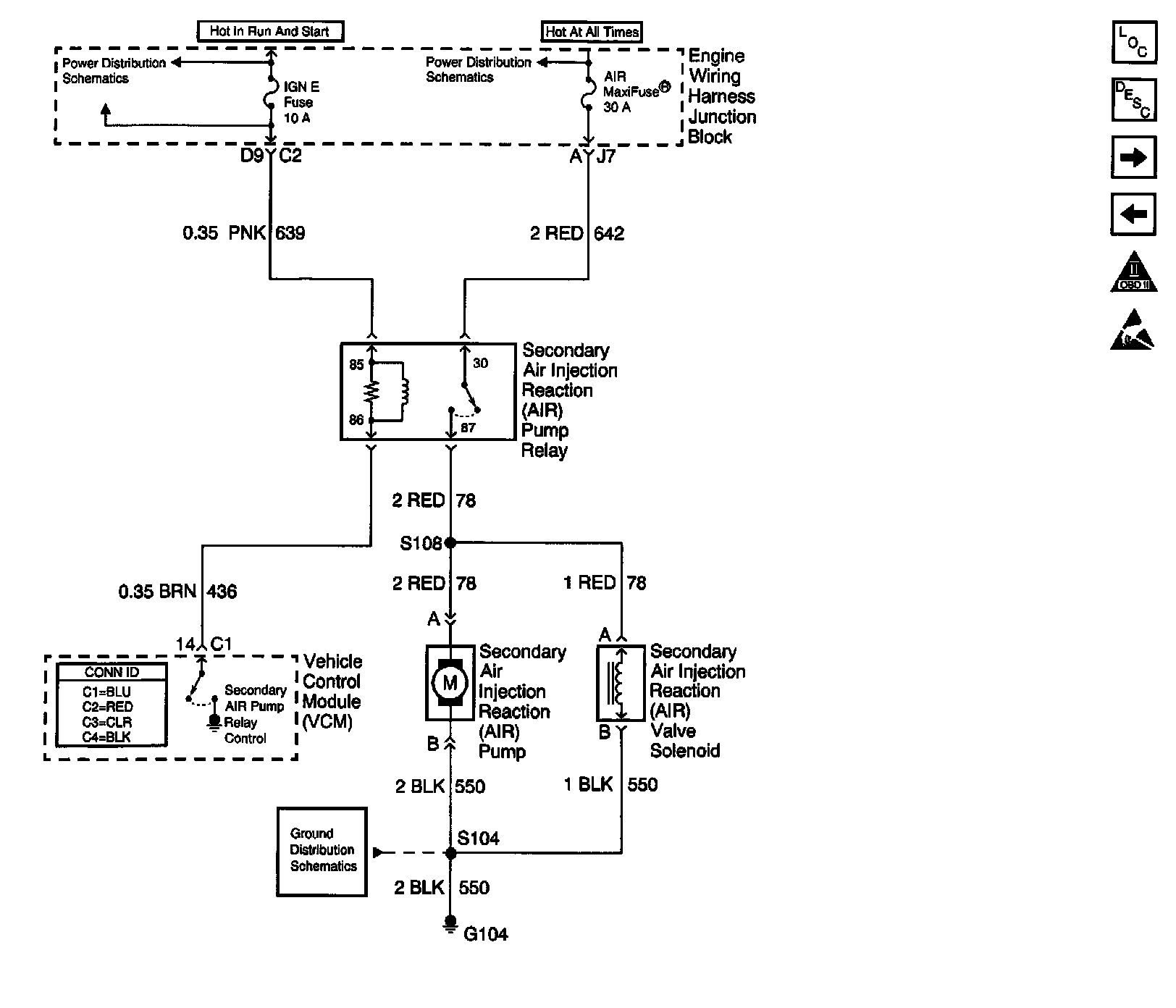

Engine Controls Schematics: AIR Relay, AIR Pump, G104, VCM, IGN E Fuse:
