Wiper Motor Replacement

REMOVAL PROCEDURE




Tools Required
J 39232 Wiper Transmission Separator

1. Remove the wiper arms.
2. Remove the air inlet grille panel.
3. Disconnect the transmission drive link from the wiper motor crank arm using the J 39232.




4. Remove the wiper motor electrical connector.

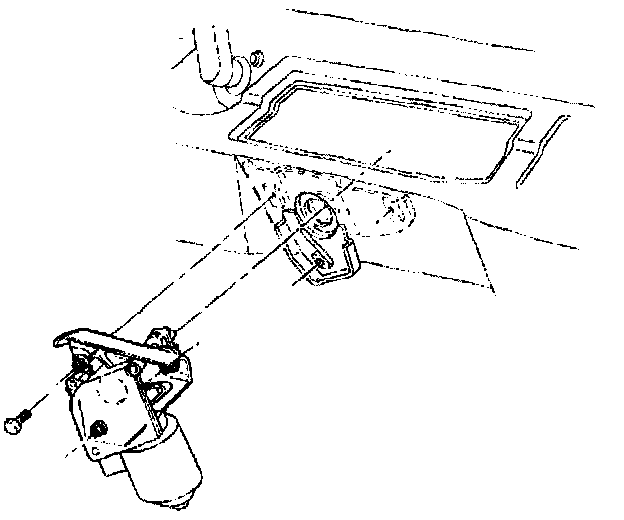

5. Remove the three bolts.
6. Remove the wiper motor from the vehicle.

INSTALLATION PROCEDURE




Tools Required
J 39529 Wiper Transmission Installer

1. Install the wiper motor on the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the three bolts.

Tighten
Tighten the three bolts to 7.0 N.m (62 lb in).

3. Connect the wiper motor electrical connector.

IMPORTANT: Assemble the wiper transmission to the crank arm past the second detent so that the seal is compressed to a maximum height of 25.5 mm (1.0 in).

Lubricate the inside of the socket with a lithium-based grease (GM P/N 1050109, 1052196 or equivalent).




4. Connect the transmission drive link to the crank arm using the J39529.
5. Install the air inlet grille panel.
6. Install the wiper arms.
