Home
>>
Chevy Truck
>>
2000
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Diagrams
>>
Connector Views
>>

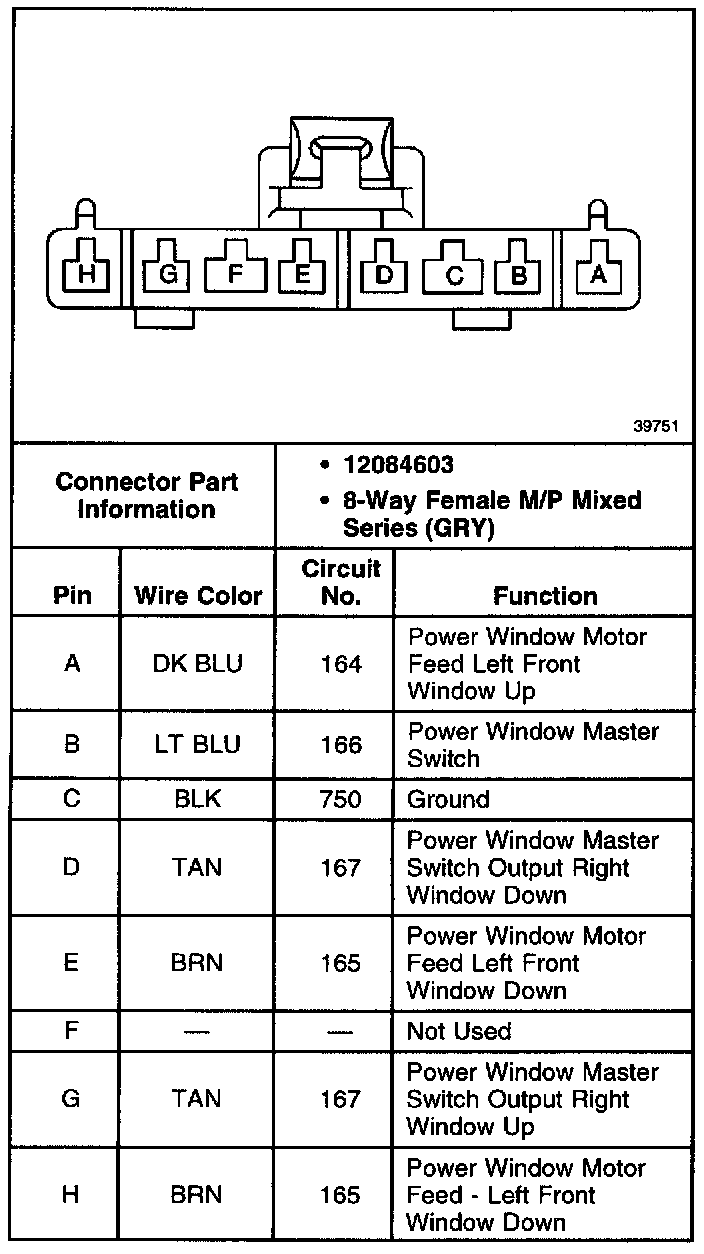

Power Window Switch (C2) LH Front Connector
Power Window Switch (C2) LH Front Connector
Power Window Switch (C2) LH Front Connector:
