Inner Shaft Seal and Bearing Replacement

Removal Procedure
^ Tools Required
- J 3092 Universal Driver Handle
- J 29369-1 Universal Bearing Remover
- J 23907 Slide Hammer
- J 23911 Seal Installer
- J 42211 Bearing Installer




1. Remove the inner axle shaft. Refer to Inner Axle Housing Shaft and Housing Replacement.
2. Hold the inner axle shaft housing in a vise by the carrier mounting flange.
3. Remove the inner axle shaft seal using a suitable seal remover.

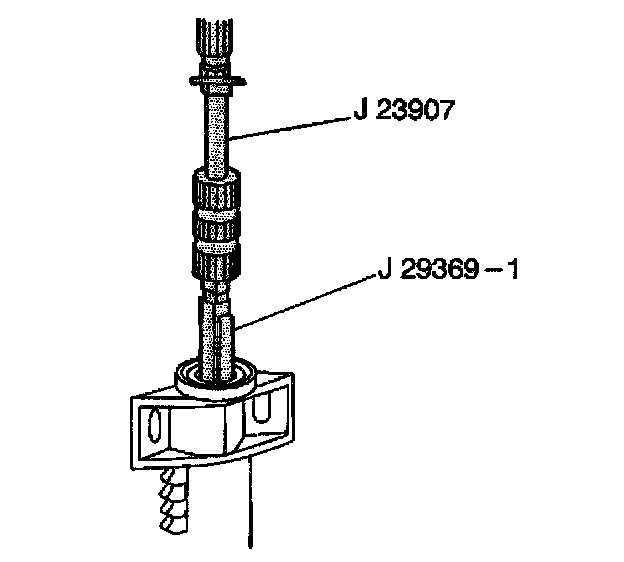

4. Remove the inner axle shaft bearing using the J29369-1 and the J23907.

Installation Procedure





1. Place the inner axle shaft housing to carrier flange flat on a level surface.
2. Install the inner axle shaft bearing using the J 42211 and the J 8092.
The bearing is installed to the proper depth when the tool is flush with the tube end.
3. Lubricate the bearing using axle lubricant. Refer to Fluid and Lubricant Recommendations.





4. Install the inner axle shaft seal with the J 23911. Drive in the seal until the seal flange is flush with the tube end.
5. Install the inner axle shaft. Refer to Inner Axle Housing Shaft and Housing Replacement.
