Automatic Transmission Dipstick - Dipstick Tube: Service and Repair

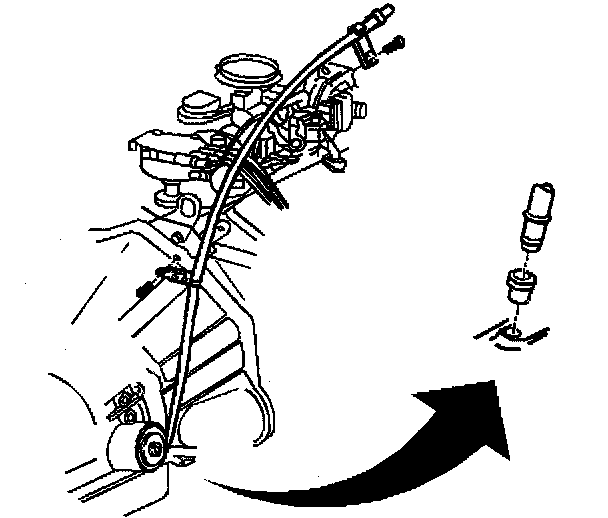

Removal Procedure





1. Remove the transmission fluid level indicator from the fluid fill tube.
2. Remove the bolt securing the transmission fluid fill tube bracket to the engine.
3. Remove the bolt securing the transmission fluid fill tube bracket to the transmission.
4. Raise the vehicle. Refer to Vehicle Lifting.
5. Remove the transmission fluid fill tube from the transmission.
6. Remove the transmission fill tube seal.

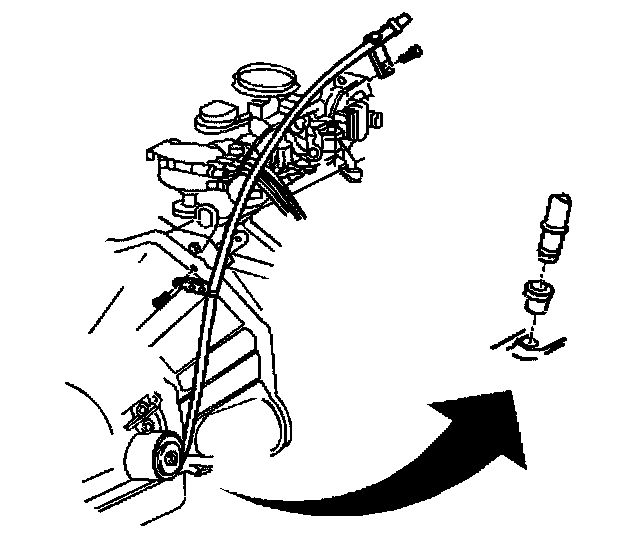

Installation Procedure





1. Install a new oil level indicator tube seal into the transmission case.
2. Install the oil level indicator tube into the seal.

Notice: Refer to Fastener Notice in General Information.

3. Install the bolt securing the oil level indicator tube bracket to the transmission.
^ Tighten the bolt to 47 Nm (53 inch lbs.).
4. Install the bolt securing the oil level indicator tube bracket to the engine.
^ Tighten the bolt to 6 Nm (53 inch lbs.).
5. Lower the vehicle.
6. Install the oil level indicator.
7. Check the transmission fluid level. Refer to Fluid Capacity.
