#2 Right Rear

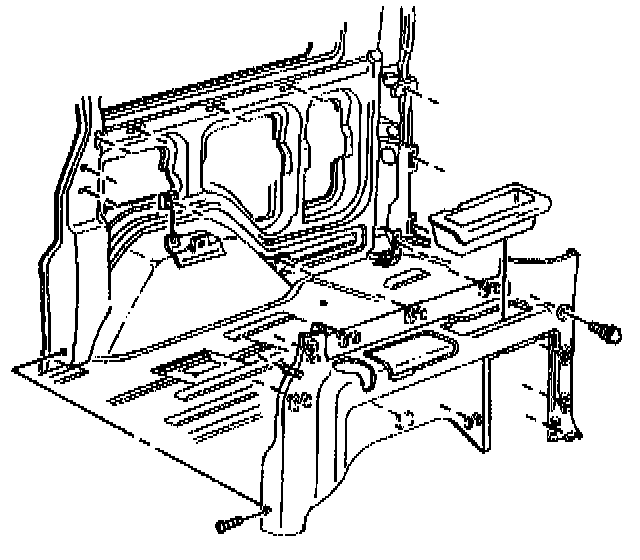

REMOVAL PROCEDURE




1. Remove the jack storage access door.
2. Remove the storage tray. Squeeze the storage tray from underneath. This will expose the retractor bolt.





3. Remove the retractor retaining bolt.





4. Remove the shoulder belt cover to expose the bolt.
5. Remove the shoulder belt retaining bolt from the bracket.
6. Remove the retractor from the vehicle.

INSTALLATION PROCEDURE




1. Install the retractor to the vehicle.



NOTE: Refer to Fastener Notice in Service Precautions.





2. Install the bolt retaining the shoulder belt to the bracket.

Tighten
Tighten the bolt retaining the shoulder belt to the bracket to 30 N.m (22 lb ft).

3. Install the shoulder belt cover.
4. Install the retractor retaining bolt.

Tighten
Tighten the retractor retaining bolt to 53 N.m (39 lb ft).





5. Install the storage tray. Squeeze the storage tray together. Press the storage tray into place.
6. Install the jack storage access door.
